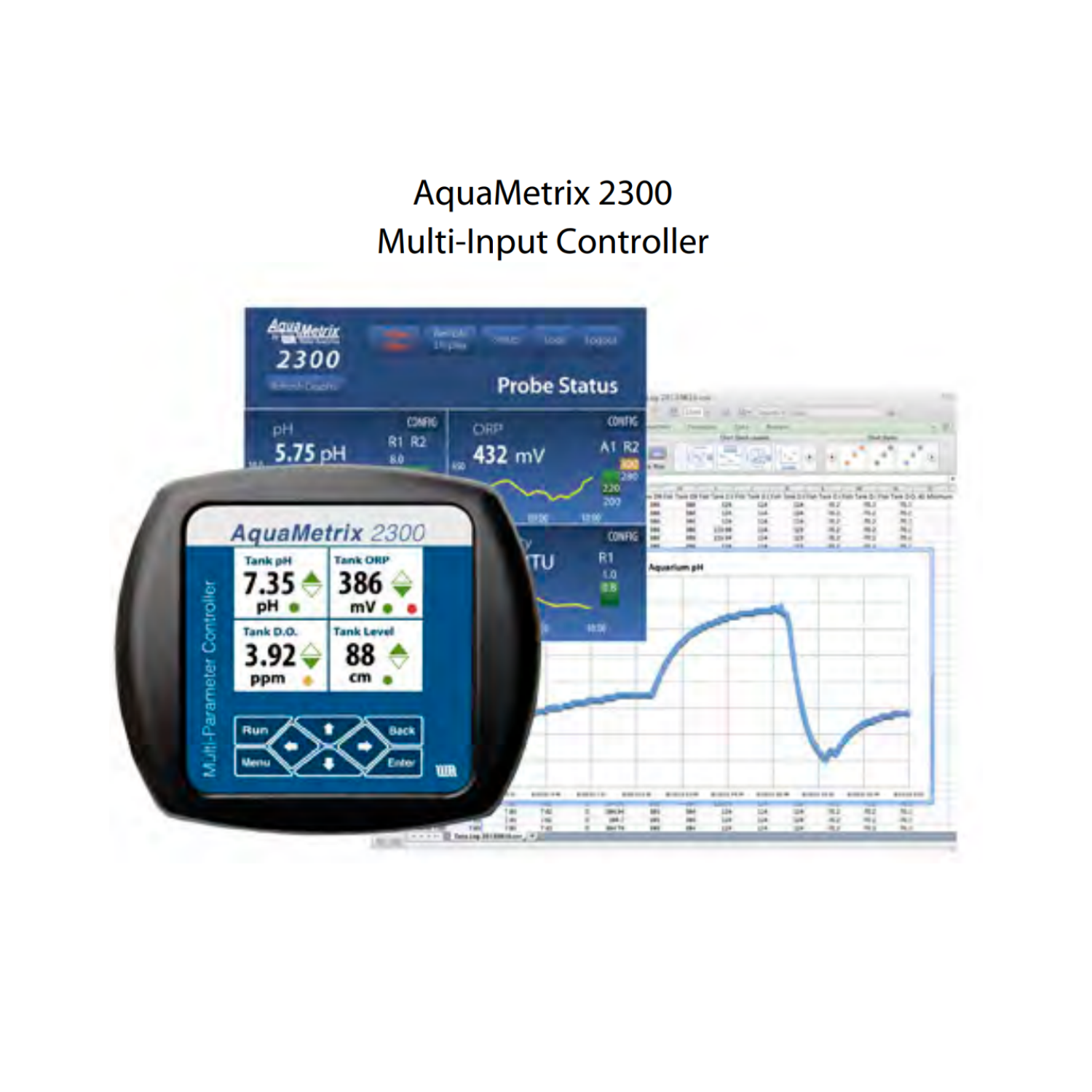

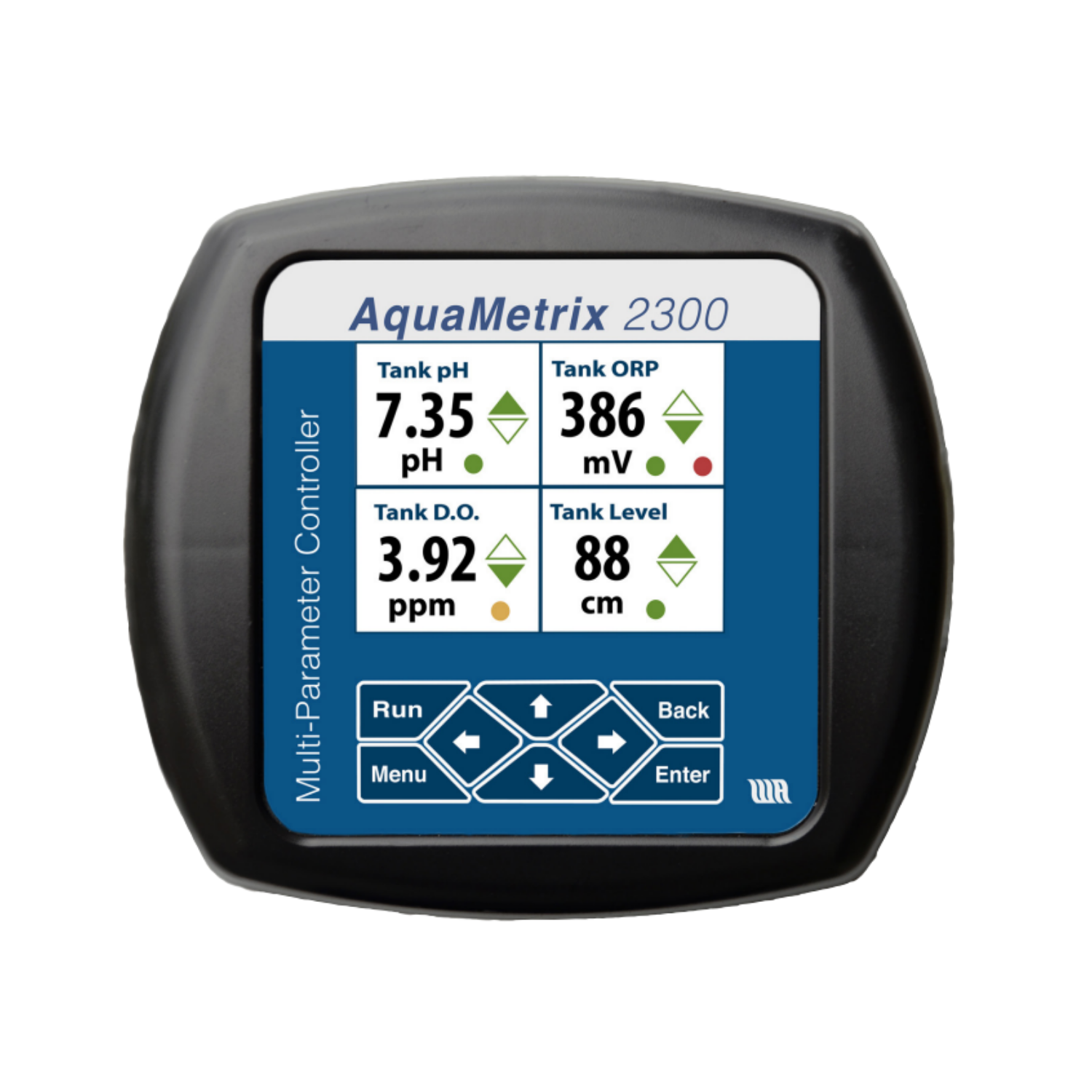

Multi Input Web-Enable Controller AM-2300

Aquametrix AM-2300 offers a breakthrough in monitoring and process control. It features the basic functionality of a PLC and SCADA systems in a compact package. The AM-2300 base unit accepts a total of four inputs from direct 4-20 mA output sensors and three square pulse/frequency wave inputs from sensors such as paddle wheel or magnetic flow meters.

Four relay outputs are programmable from any of the inputs also one relay can be made common to all inputs for alerting and alarming purposes.

The AM-2300 can be expanded up to 16 inputs: Eight physical and eight virtual. A virtual sensor can be added, for example, a totalizer for a flow sensor. The unit has the ability to add simple equations, for example, a virtual sensor looking at the difference between two physical sensor measurements.

More complex functions are available and can be customized at the factory. More inputs or output options are available with the purchase of an expansion card.
