Dew Point Measurement Display DS 400


For stationary dew point monitoring of refrigeration or adsorption dryers. The touch screen graphic display enables an intuitive operation and shows the progress of the measured values. 2 alarm relays are available for monitoring of threshold values. Available either with a classic analog output 4...20 mA or optionally with digital interfaces like Ethernet and RS 485 (Modbus protocol). As a stand-alone solution, the measured data stored in the optional data logger can be read-out via USB stick and evaluated by means of the software CS Soft Basic.

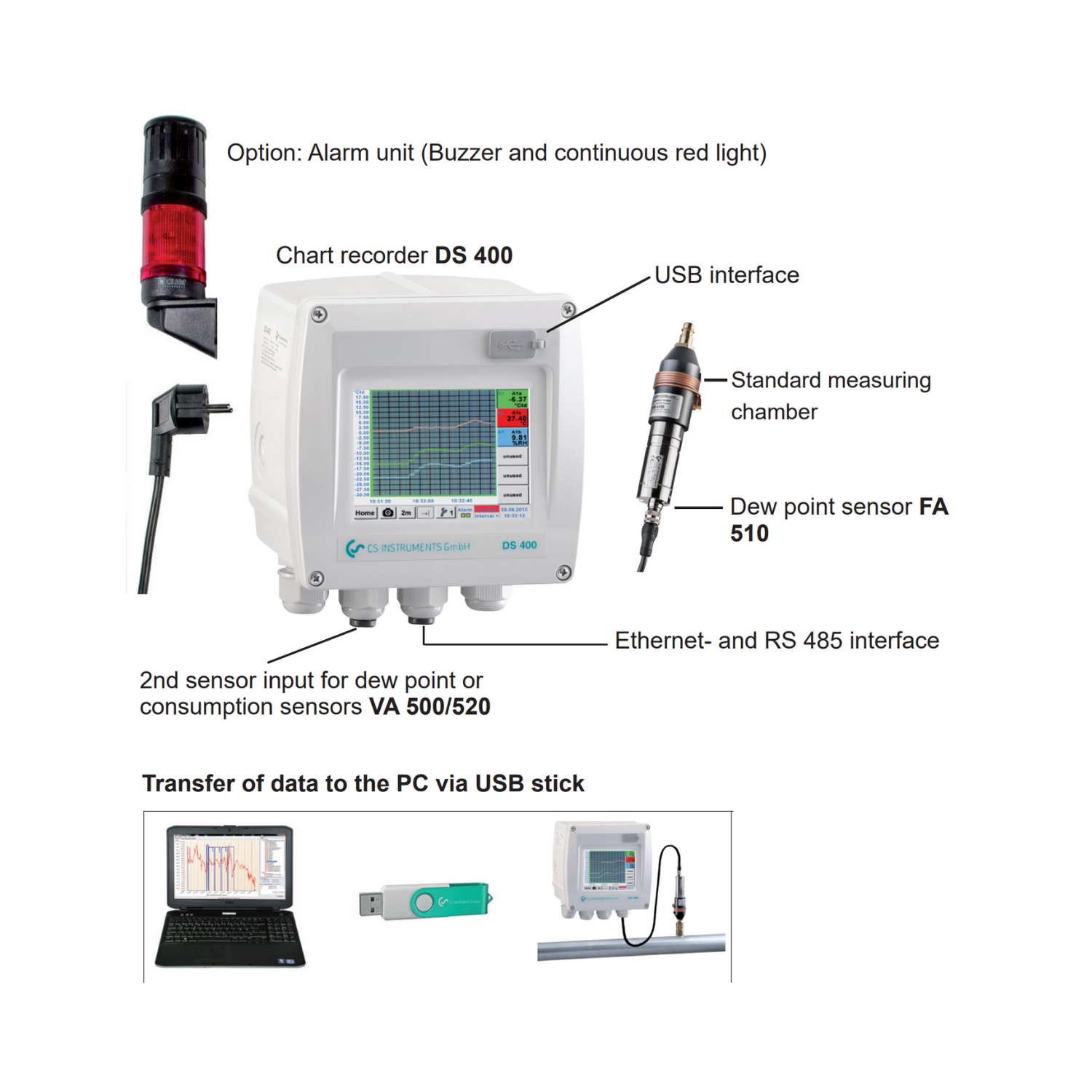

Special Features of dew point measurement DS 400-Set
  • 3.5" graphic display - easy operation with touch screen
  • System ready for plug-in: Everything completely wired
  • 2 alarm contacts (230 VAC, 3 A) pre- and main alarm freely adjustable
  • An alarm delay can be set for each alarm relay
  • 4...20 mA analogue output
  • Option: Ethernet and RS 485 interface (Modbus protocol)
  • Option: Webserver
Option: Integrated data logger
  • Recording of the dew point progression of up to 100 million measuring values
  • CS Soft Basic for evaluation in graphic and table form. Read-out of the data either via USB stick or via Ethernet
