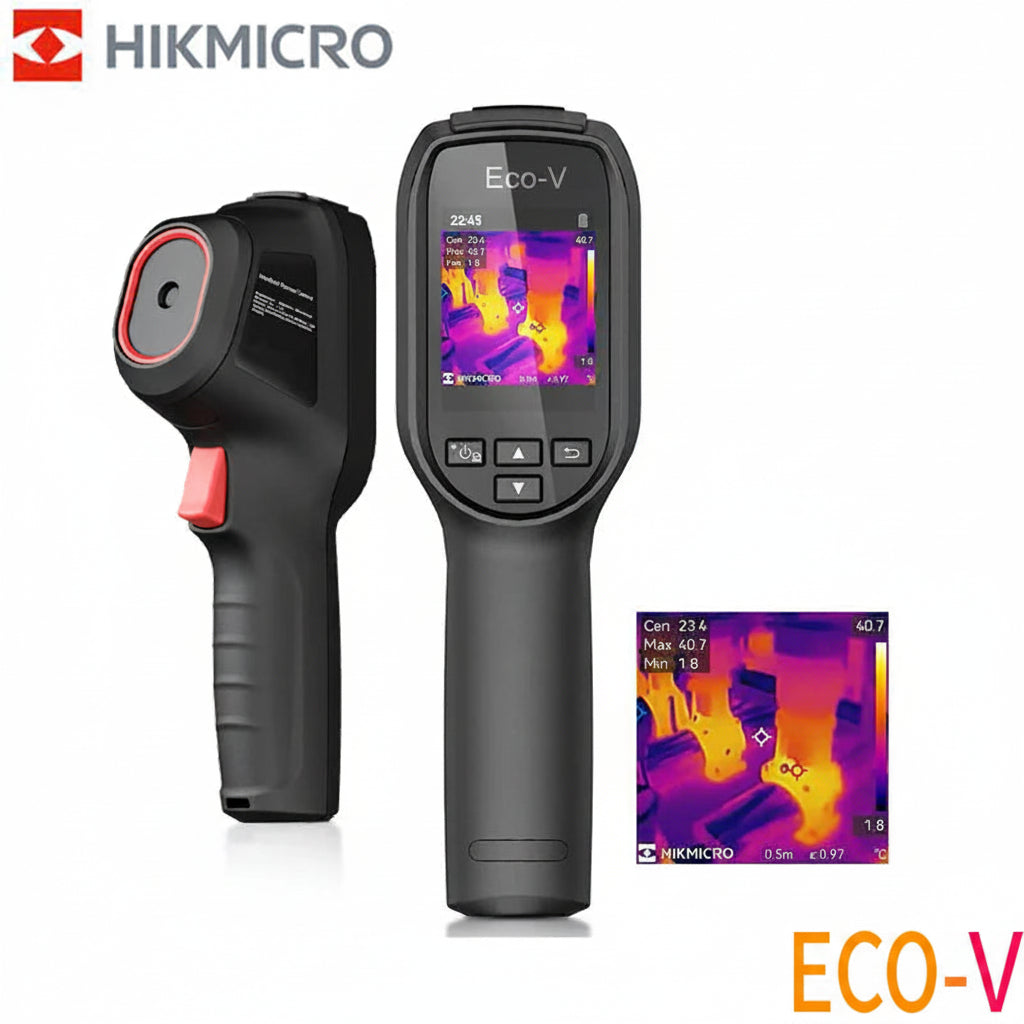

Hikmicro ECO-V Handheld Thermal & Visual Camera with Fusion Mode

Dual-Camera Power for Precision Troubleshooting. The Hikmicro ECO-V takes the trusted, rugged platform of the baseline ECO and adds a 0.3 MP visible-light camera. By pairing infrared technology with a physical visual camera, the ECO-V gives technicians, contractors, and inspectors the ability to see exactly what they are measuring in real-time, eliminating guesswork on busy jobsites.

Key Features:

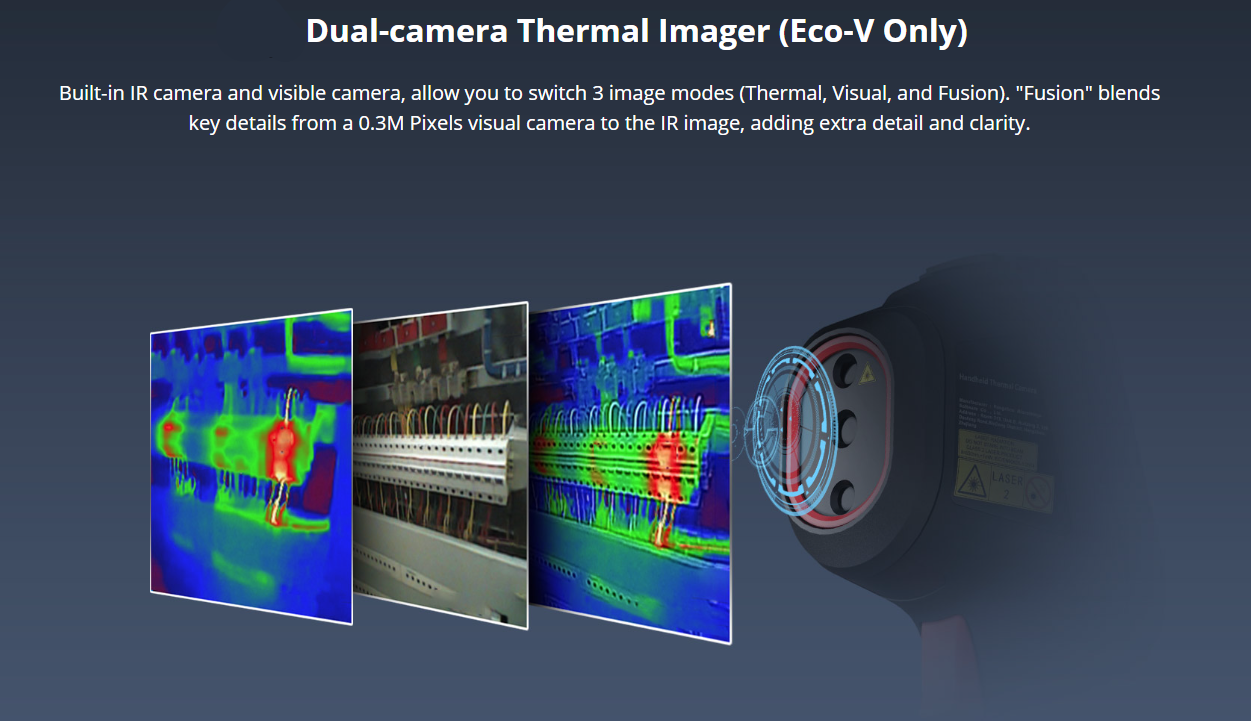

• Dual-Camera Image Fusion (ECO-V Exclusive): Seamlessly cycle between three viewing modes: Standard Thermal, pure Visual, and Fusion Mode. Fusion overlays key outlines and physical details from the 0.3 MP optical camera onto the thermal image for unmatched diagnostic clarity.

• 1-Click Simultaneous Capture (ECO-V Exclusive): Press the trigger once to automatically save both the thermal and the visual image at the same time, giving you perfect side-by-side evidence for client reports.

• SuperIR Image Upscaling: The internal 96 x 96 thermal core dynamically scale up to 240 x 240 resolution (57,600 pixels) on the live view and in saved photos via SuperIR technology.

• Laser Pointer Integration: Easily identify exactly where your center measurement crosshair is pointing on physical components using the built-in Class II laser pointer.

• Smooth 25Hz Refresh Rate & 50° Field of View: Sweep across wide engine bays, subfloors, and electrical panels quickly and without lag.

• Pro-Grade Temperature Range: Accurately charts targets from -20°C to 550°C (-4°F to 1022°F) with a precise accuracy of ±2°C or ±2%.

• Site-Ready Construction: Features 8 full hours of battery life, an IP54 dust and splash rating, and a 2-meter drop protection standard.
