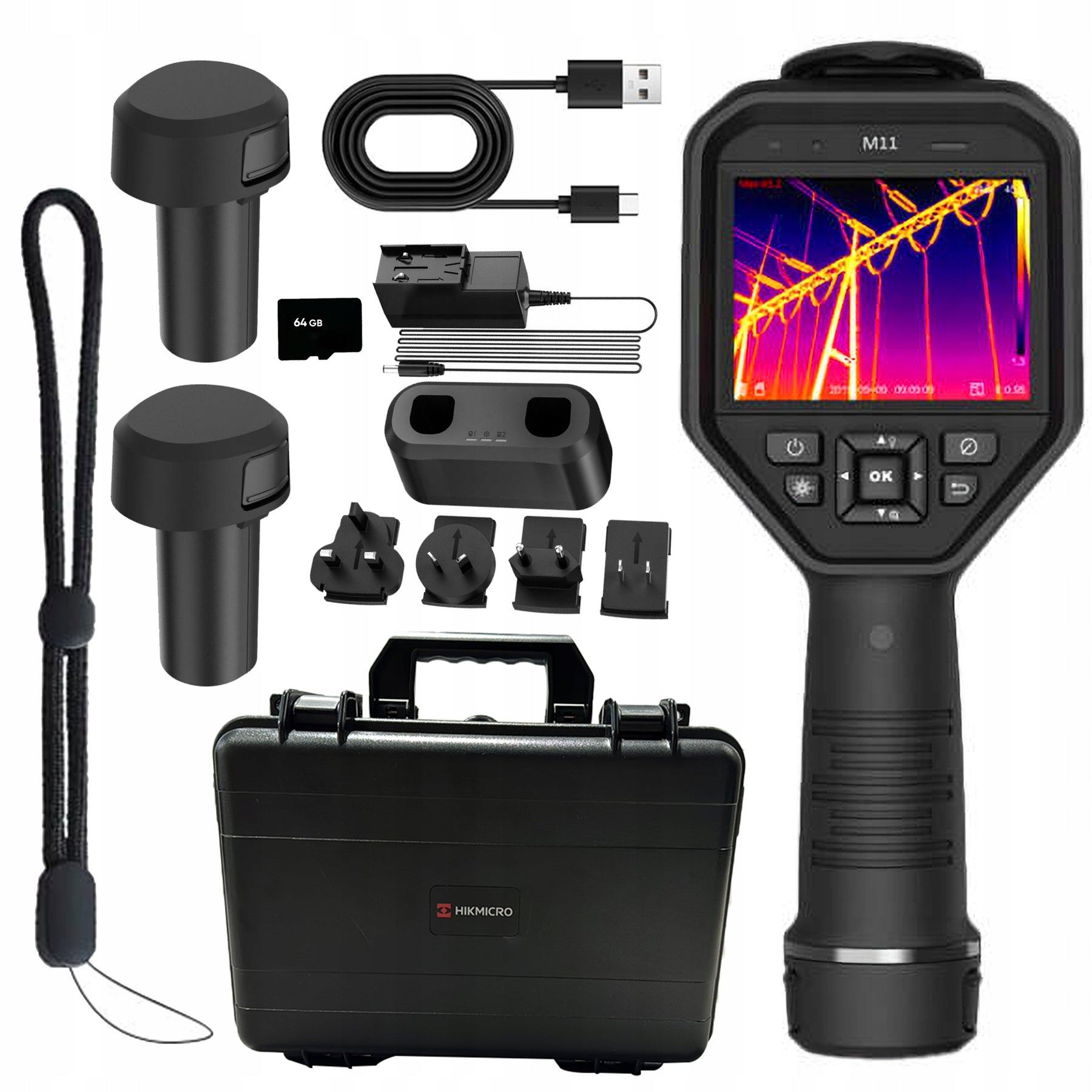

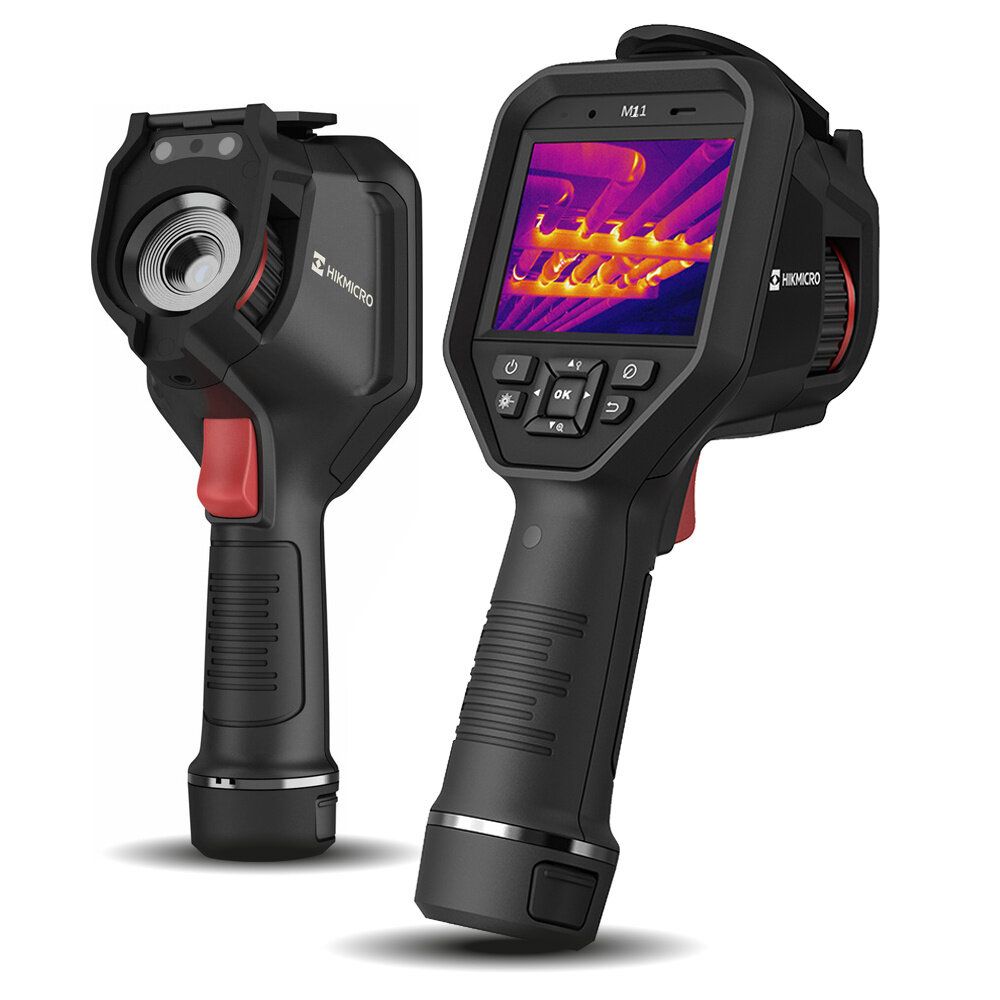

HIKMICRO M11 Professional Handheld Thermal Imaging Camera

Industrial-Grade Thermography, Built for Field Inspections.

The HIKMICRO M11 is a rugged, handheld thermal imaging camera engineered to streamline professional facility inspections, predictive maintenance, and utility troubleshooting. Combining a highly sensitive infrared core with a crystal-clear 8 MP optical camera, the M11 gives technicians the power to safely diagnose faults, track mechanical strain, and quantify anomalies with pinpoint precision. Built to handle grueling site environments, it features a responsive 3.5" touchscreen and long-range laser targeting tool embedded into an ergonomic, drop-resistant pistol grip.

Key Features:

• Crisp 192x144 Native Thermal Resolution: Features 27,648 native sensor pixels enhanced by HIKMICRO's SuperIR technology to upscale live views and saved snapshots to a crisp 384x288 display resolution.

• Precision Manual Focus Ring: Never suffer from blurry data. Smoothly adjust focal clarity manually on objects as close as 10 cm (0.33 ft) out to infinity, capturing accurate results across macro circuits or distant infrastructure.

• High-Definition 8 Megapixel Visual Lens: Equipped with a premium 8 MP visual camera to capture brilliant, real-world reference pictures alongside your thermal mappings.

• 5 Versatile Bi-Spectrum Image Modes: Seamlessly shift between Thermal, Visual, Picture-in-Picture (PIP), Blending, and Bi-Spectrum Image Fusion. Fusion mode stamps physical edges and text over heat patterns so you can identify components instantly.

• Industrial Temperature Range & 1-Tap Contrast Adjust: Measures target temperatures spanning from -20°C to 550°C (-4°F to 1022°F). Utilize the "1-Tap Level & Span" touchscreen mechanic to instantly isolate and increase contrast on specific problem areas.

• Advanced On-Site Documentation & 12-Hour Continuous Power: Comes bundled with two interchangeable, rechargeable lithium-ion batteries providing up to 6 hours of independent runtime each (12 hours total). Tag snapshots on site with up to 60 seconds of voice annotations or 200-character text notes.

• Ruggedized IP54 Build & Wi-Fi Streaming: Certified with an IP54 weather rating and 2-meter (6.6 ft) drop-proof testing. Stream real-time diagnostic videos to secondary monitors via dual-band Wi-Fi using the free HIKMICRO Viewer app.

Datasheet
