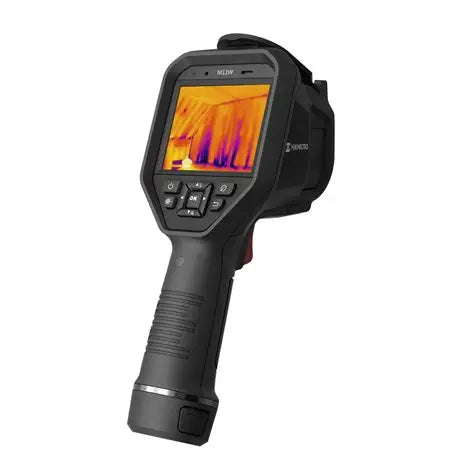

HIKMICRO M11W Wide-Angle Handheld Thermal Imaging Camera (Focus-Free)

Accelerate Large-Scale Inspections with Wide-Angle Ultra-Fast Scanning.

The HIKMICRO M11W is a professional, pistol-grip thermography camera engineered specifically for rapid inspections of expansive surfaces and massive objects. Featuring a specialized wide-angle, focus-free optic system, it allows technicians to capture more data in a single frame without constantly stepping back or twisting manual focus wheels. It is the perfect efficiency tool for residential energy auditors, solar array surveyors, structural building inspectors, and industrial maintenance managers scanning large areas under tight time constraints.

Key Features:

• Focus-Free Operation: No manual focal ring adjustment required. From 0.5 meters (1.64 feet) out to infinity, everything remains automatically sharp, allowing you to point-and-shoot targets instantly with absolute confidence.

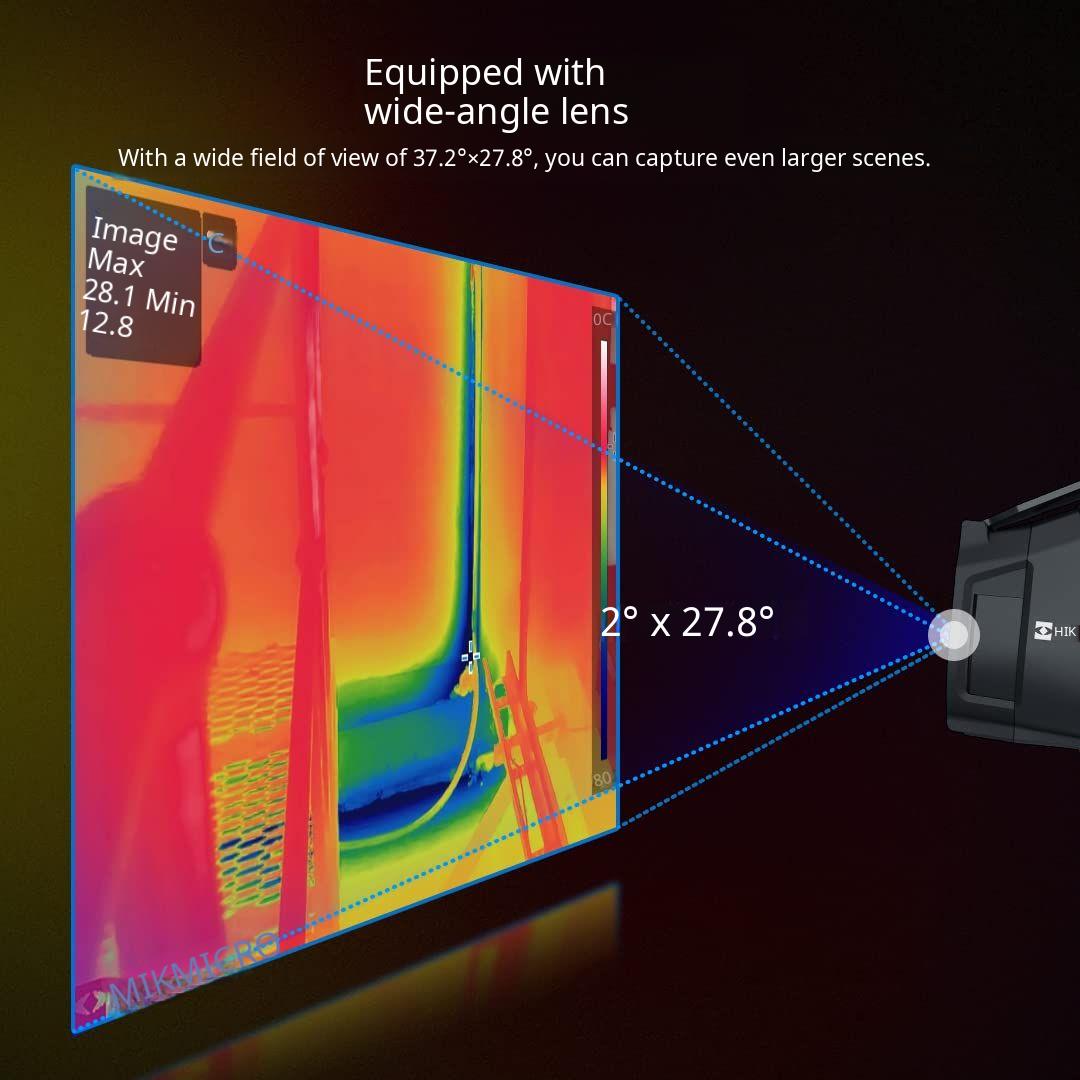

• Expansive 37.2° x 27.8° Wide Field of View (FOV): Captures double the background canvas area compared to standard telephoto models. Scan entire walls, lengthy floor piping networks, or full breaker cabinets in one swift snapshot.

• Thermal Sensor with SuperIR: Delivers 27,648 native infrared pixels upscaled automatically via HIKMICRO’s SuperIR algorithms to a crisp 384 x 288 display resolution.

• High-Output 8 Megapixel Optical Camera: Includes a premium 8 MP visual module for recording high-fidelity reference images alongside your thermal captures.

• 5 Advanced Bi-Spectrum Image Modes: Smoothly cycle through Thermal, Visual, Picture-in-Picture (PIP), Blending, and Bi-Spectrum Image Fusion. Fusion overlays edge lines over heat maps so you can safely read panel markings and breaker numbers.

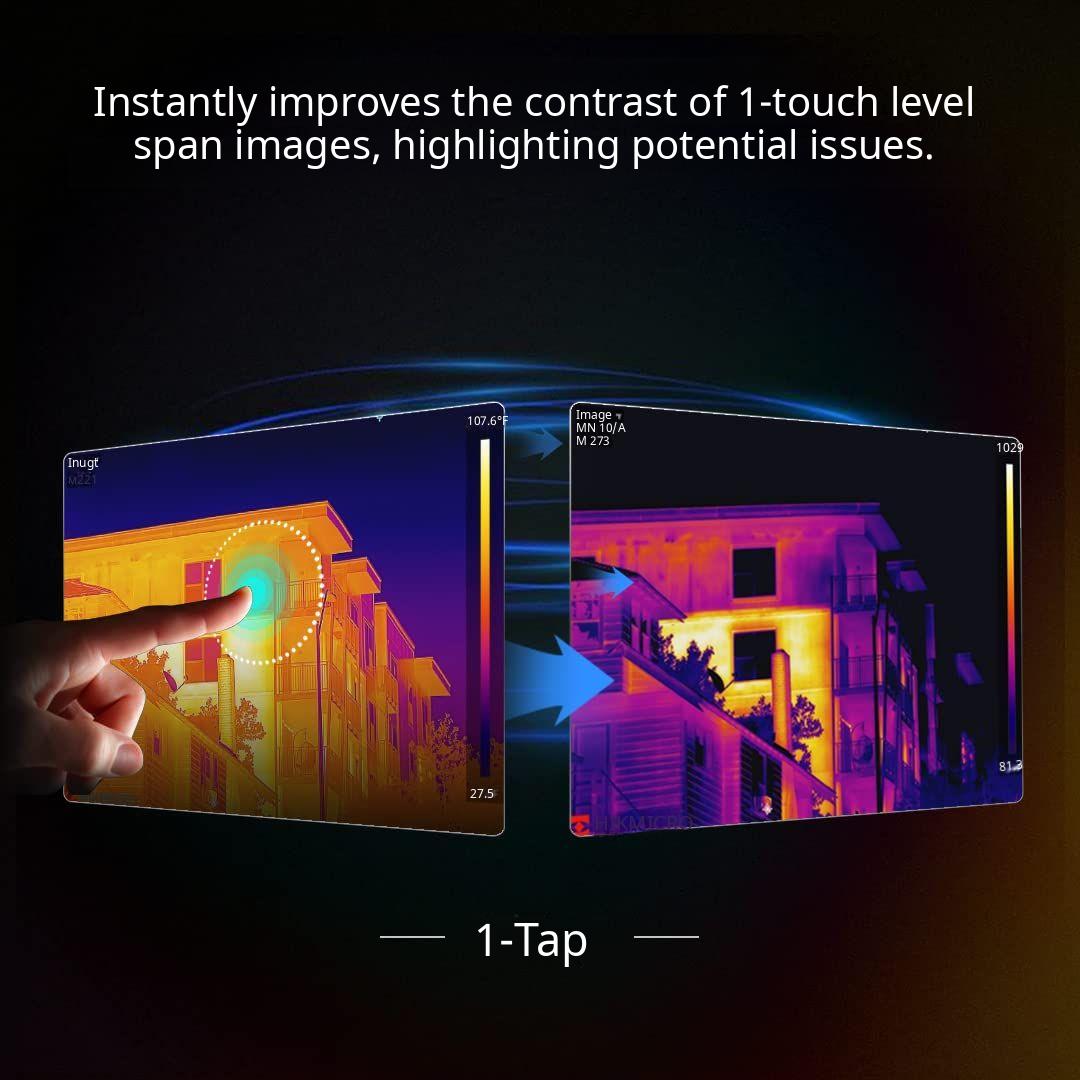

• Heavy Industrial 650°C (1202°F) Thermal Capacity: Tracks object temperatures accurately across two broad auto-switching spans from -20°C to 650°C. Includes a 1-Tap Touchscreen Level & Span adjustment to instantly sharpen details in critical low-contrast frames.

• 12-Hour Continuous Dual Battery System: Ships with two swappable, rechargeable lithium-ion cells providing 6 hours of continuous testing time each. Voice notes up to 60 seconds and text entry up to 200 characters save straight onto the included 32GB Micro SD card.
