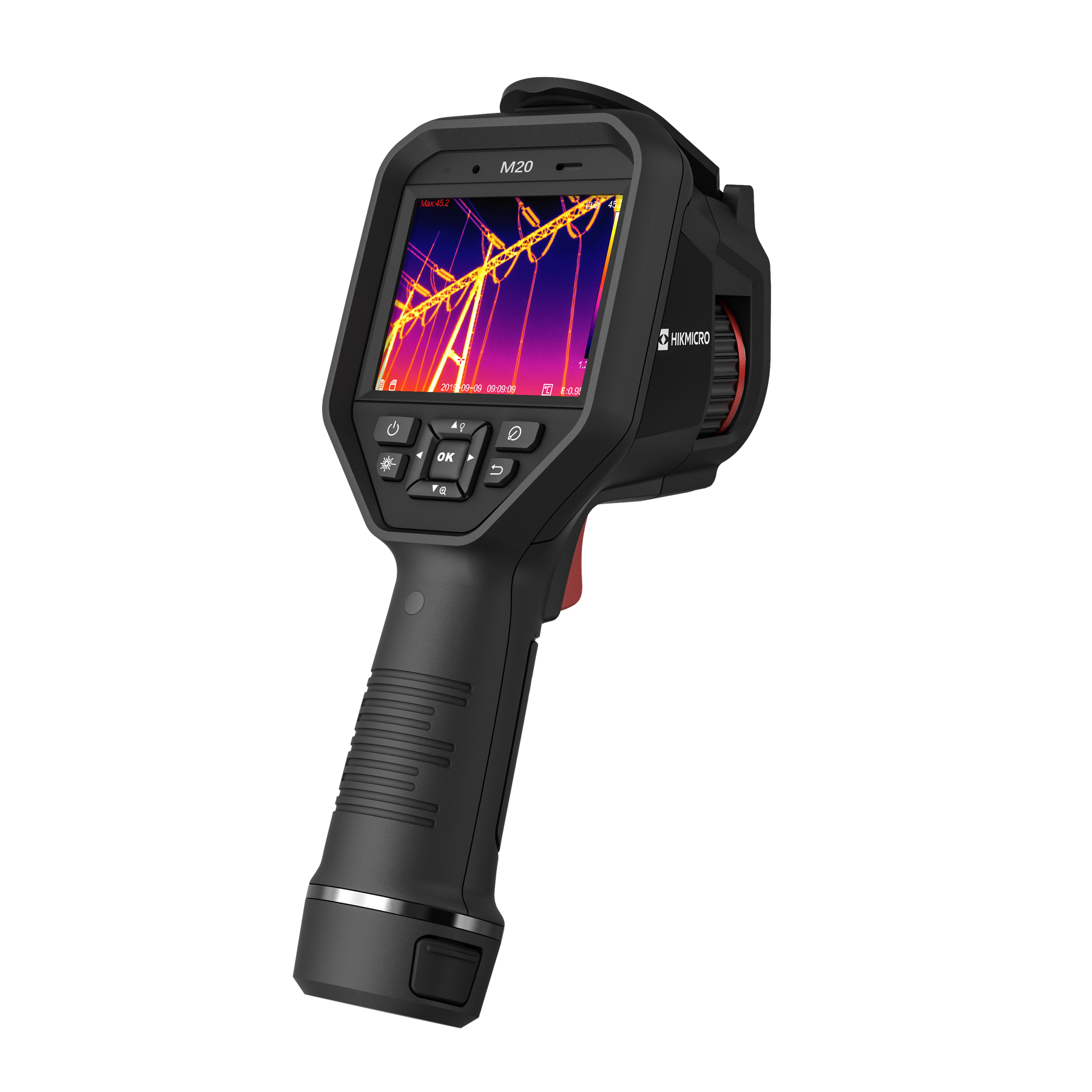

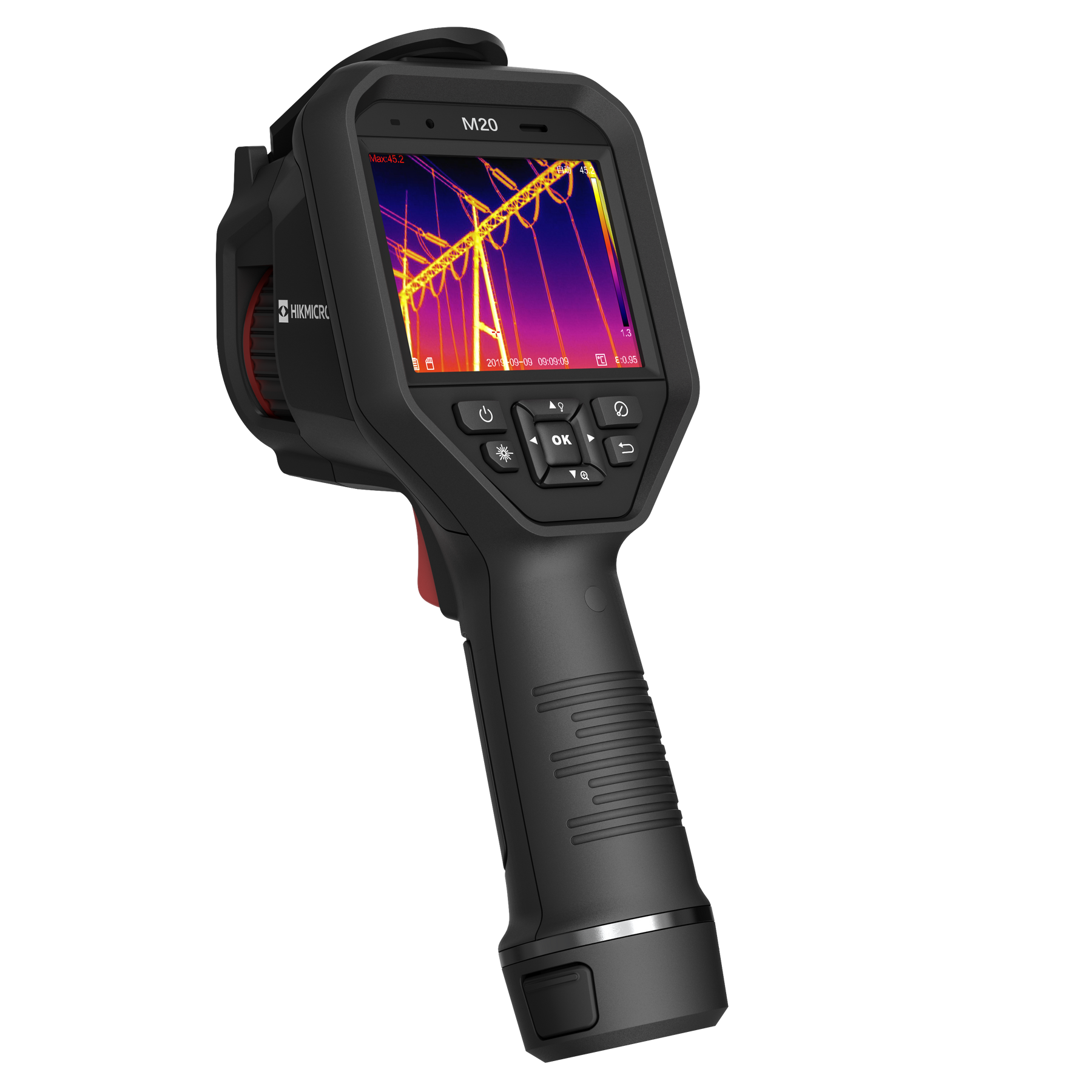

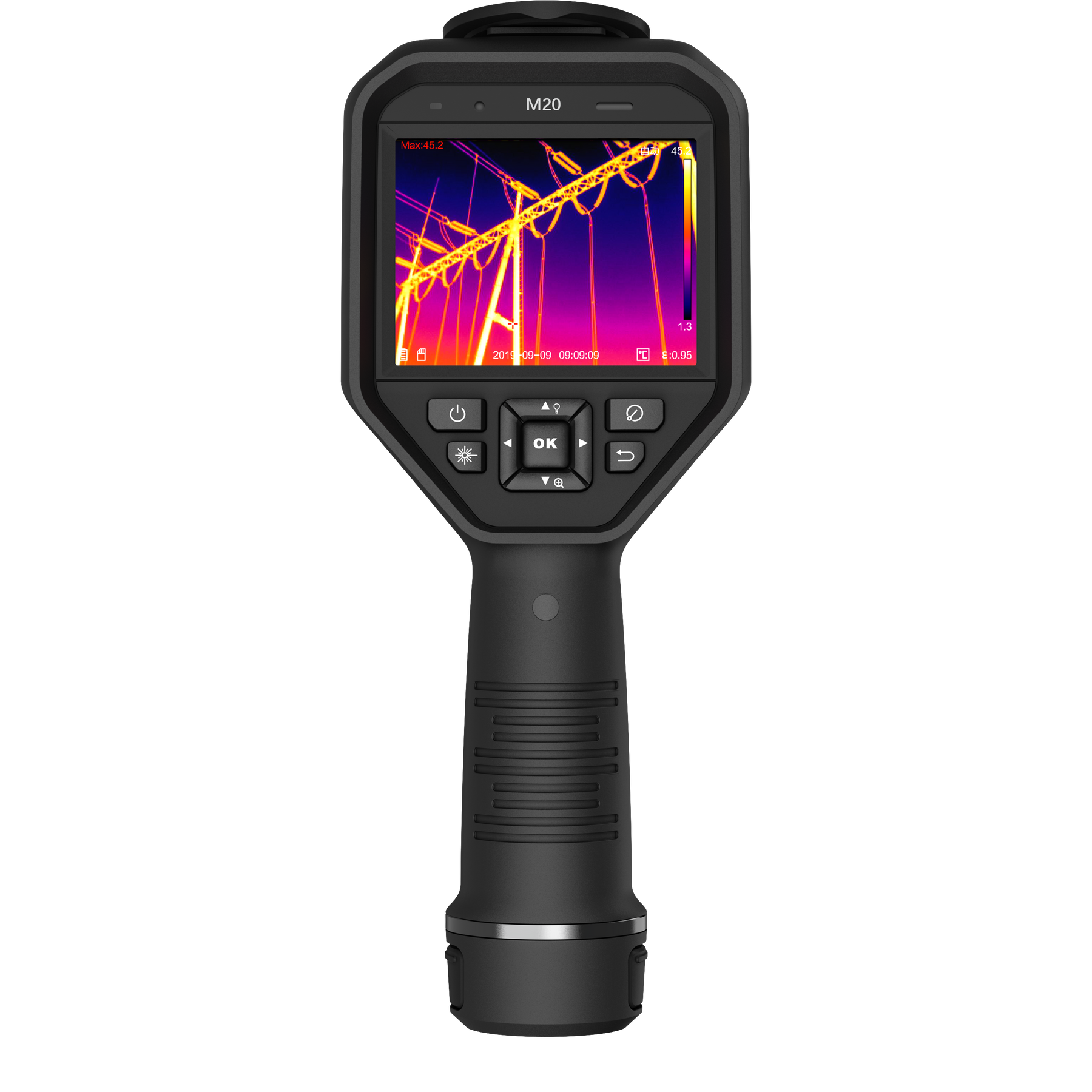

HIKMICRO M20 Professional Handheld Thermal Imaging Camera

High-Resolution Diagnostic Precision for Demanding Industrial Inspections. The HIKMICRO M20 is an advanced, professional handheld thermography camera engineered to bring unparalleled clarity and speed to your troubleshooting workflow. Equipped with a high-sensitivity 256 × 192 thermal sensor and an 8 MP visual camera, the M20 provides crisp, radiometric imaging that simplifies the detection of hidden electrical faults, structural defects, and mechanical friction. Housed in a ruggedized, drop-tested body with an ultra-responsive 3.5" touchscreen, it gives field inspectors the accurate analytics and visual evidence needed to generate professional reports right on site.

Key Features:

• Enhanced 256 × 192 Native Thermal Resolution: Harness 49,152 native infrared pixels to isolate minor temperature deviations before they become major failures.

• Real-Time SuperIR Enhancement: Onboard algorithms upsample your thermal feed and saved photos to a sharp 512 × 384 pixel image resolution for maximized edge detail.

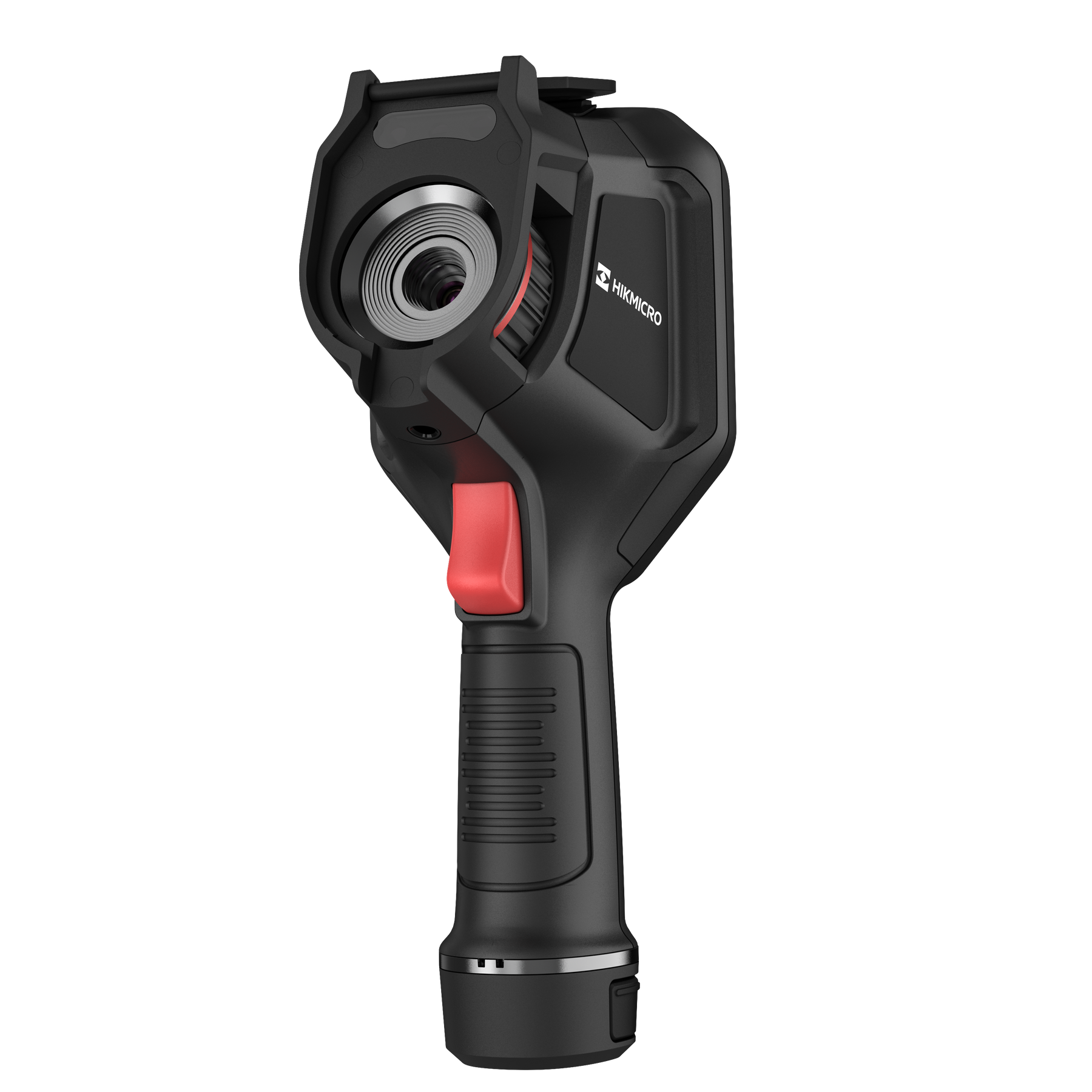

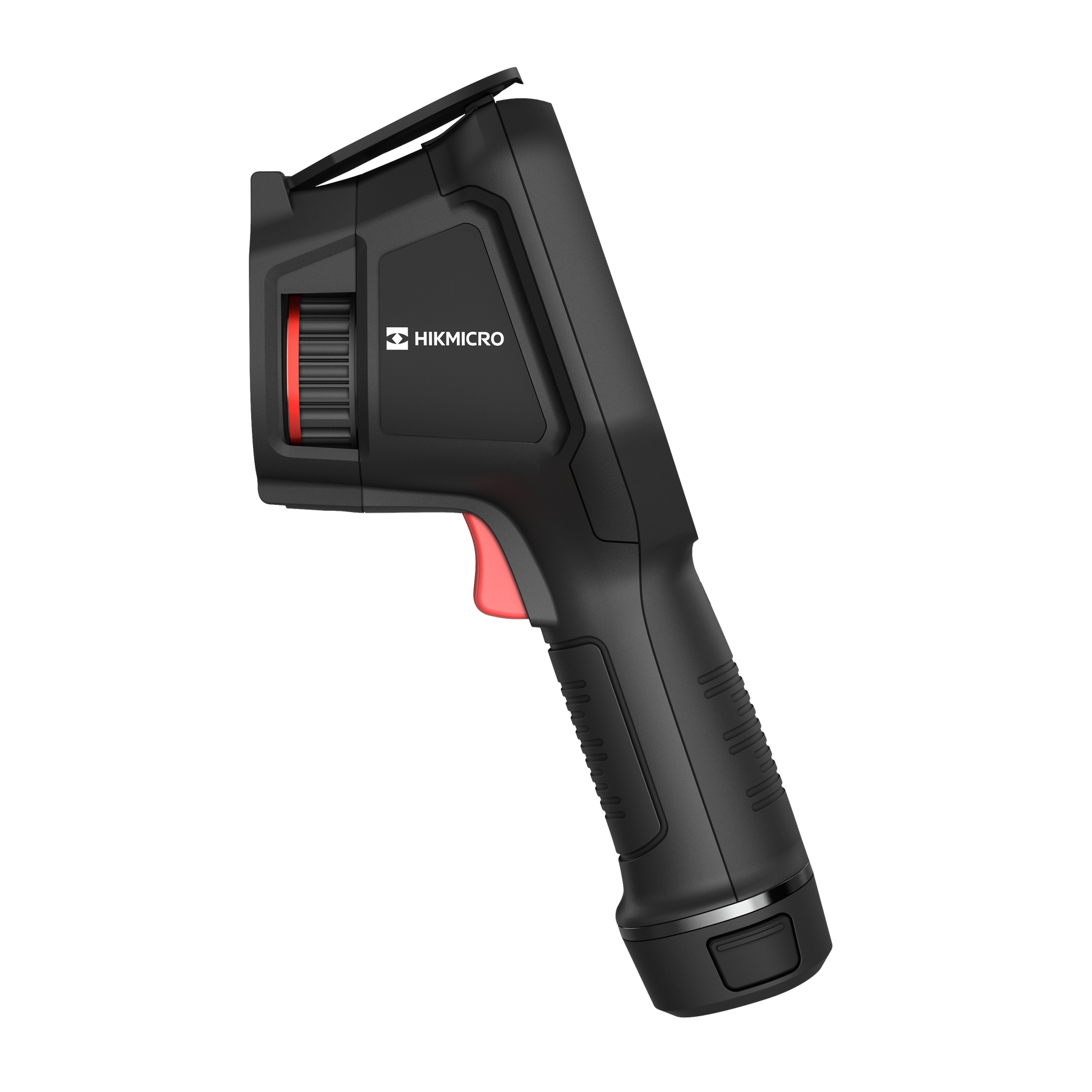

• Ultra-Precise Manual Focus Ring: Achieve flawless edge sharpness. The manual focus design lets you sharpen image targets from 10 cm (0.33 ft) out to infinity, making it ideal for macro component inspection or long-range substations.

• Premium 8 Megapixel Visual Lens: Capture beautiful, high-definition real-world reference frames alongside your infrared profiles.

• Bi-Spectrum Blending & Image Fusion: Effortlessly cross-analyze targets with 5 image modes: Thermal, Visual, Picture-in-Picture (PIP), Blending, and Bi-Spectrum Image Fusion, which superimposes structural edges onto heat signatures so labels remain legible.

• Flexible Temperature Thresholds: Accurately gauges surface temperatures from -20°C to 550°C (-4°F to 1022°F) across multi-zone monitoring configurations.

• 1-Tap Level & Span Adaptation: Touch any point on the 3.5" LCD screen to instantly refocus the camera’s contrast window over a targeted object, making localized hot spots stand out immediately.

• 12-Hour Continuous Power System: Packs two independent, hot-swappable rechargeable lithium-ion cells providing up to 6 hours of testing runtime per battery block.

• IP54 Industrial Protection: Built to handle harsh environments with an IP54 moisture/dust rating and a 2-meter (6.6 ft) drop-tested frame.
