HIKMICRO M30 High-Definition Professional Handheld Thermal Imaging Camera
The Flagship M-Series Solution for Advanced High-Definition Thermography.

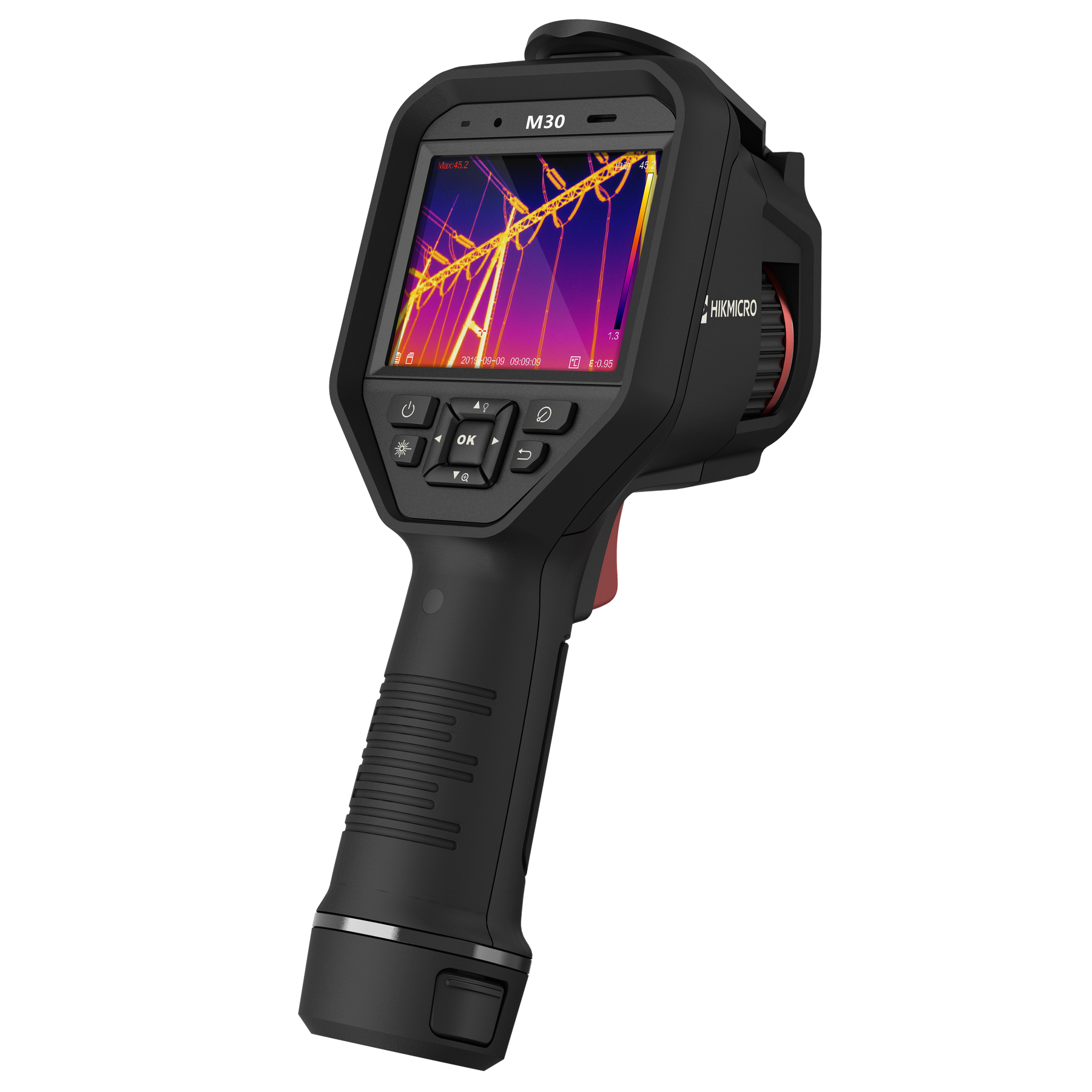

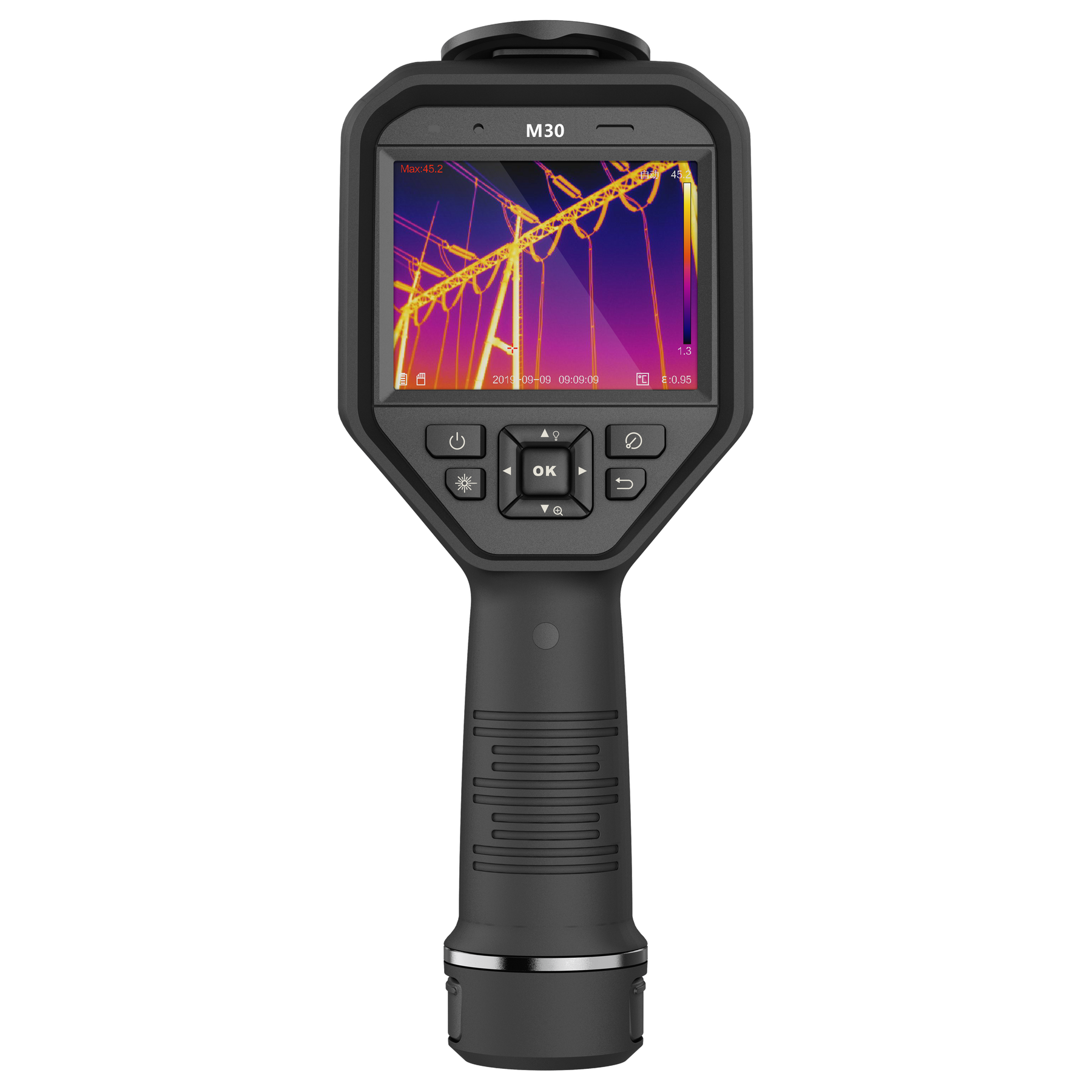

The HIKMICRO M30 is a top-tier, commercial-grade handheld thermal imaging camera engineered for uncompromising field specialists who require maximum diagnostic detail. Boasting a high-density 384 x 288 resolution thermal core and an ultra-sensitive sensor, the M30 simplifies complex building diagnostics, high-voltage utility checks, and heavy manufacturing asset monitoring. Housed in a highly durable, pistol-grip shell with a 3.5" LCD touchscreen, it delivers the professional resolution and visual evidence needed to generate conclusive radiometric reports under demanding timeline pressures.
Key Features:
-
Flagship 384 x 288 Native Thermal Resolution: Harness 110,592 native measurement pixels to evaluate intricate mechanical patterns and minor structural energy paths with absolute clarity.
-
Next-Gen SuperIR Image Processing: Onboard AI processing upsamples your live thermal video stream and saved photos 4X, projecting a stunning 640 × 480 display output onto the screen for maximized edge clarity.
-
Ultra-Sensitive Thermal Core: Features a premium sensor rating of < 35 mK , allowing the camera to isolate and visualize microscopic temperature fluctuations that standard devices blend away.
-
Precision Manual Focus Ring: Retain total control over data accuracy. Focus sharply on targets from as close as 20 cm (0.65 ft) out to long distances to guarantee exact temperature readouts.
-
High-Definition 8 Megapixel Visual Lens: Records pristine real-world structural images alongside your thermal sweeps to provide a definitive reference context for clients and inspectors.
-
5 Bi-Spectrum Fusion Modes & 1-Tap Adjust: Seamlessly cycle through Thermal, Visual, Picture-in-Picture (PIP), Blending, and Bi-Spectrum Image Fusion, which places physical edges directly over heat signatures. Tap any localized spot on the touchscreen to instantly lock the level and span contrast over target items.
-
Expanded 64GB Removable Storage: Ships with an upgraded 64GB Micro SD card capable of saving up to 100,000 radiometric snapshots or 54 hours of continuous MP4 inspection footage.
-
12-Hour Continuous Field Operation: Includes two hot-swappable, rechargeable lithium-ion battery blocks and a desktop charging cradle to confidently keep you powered through long multi-site industrial shifts.
-
Rugged IP54 Build with Wi-Fi Casting: Built for punishing environments with an IP54 dust/water-resistance rating and 2-meter drop protection. Stream real-time radiometric feeds to secondary tablets or screens via dual-band Wi-Fi.
