HIKMICRO Mini-X Wireless Dual-Camera Thermal Imager (iOS & Android)

Wireless Freedom Meets Dual-Lens High-Temperature Diagnostics. The HIKMICRO Mini-X redefines mobile thermography by severing the physical tether to your device. Operating via a stable, built-in dual-band Wi-Fi connection, this innovative, pocketable camera streams radiometric thermal video directly to any iOS or Android smartphone, tablet, or Windows computer. Featuring its own internal 4-hour rechargeable battery, a dual-lens framework, and versatile magnetic mounting options, it delivers unmatched flexibility in cramped crawlspaces, automotive bays, and high-voltage electrical vaults.

Key Features:

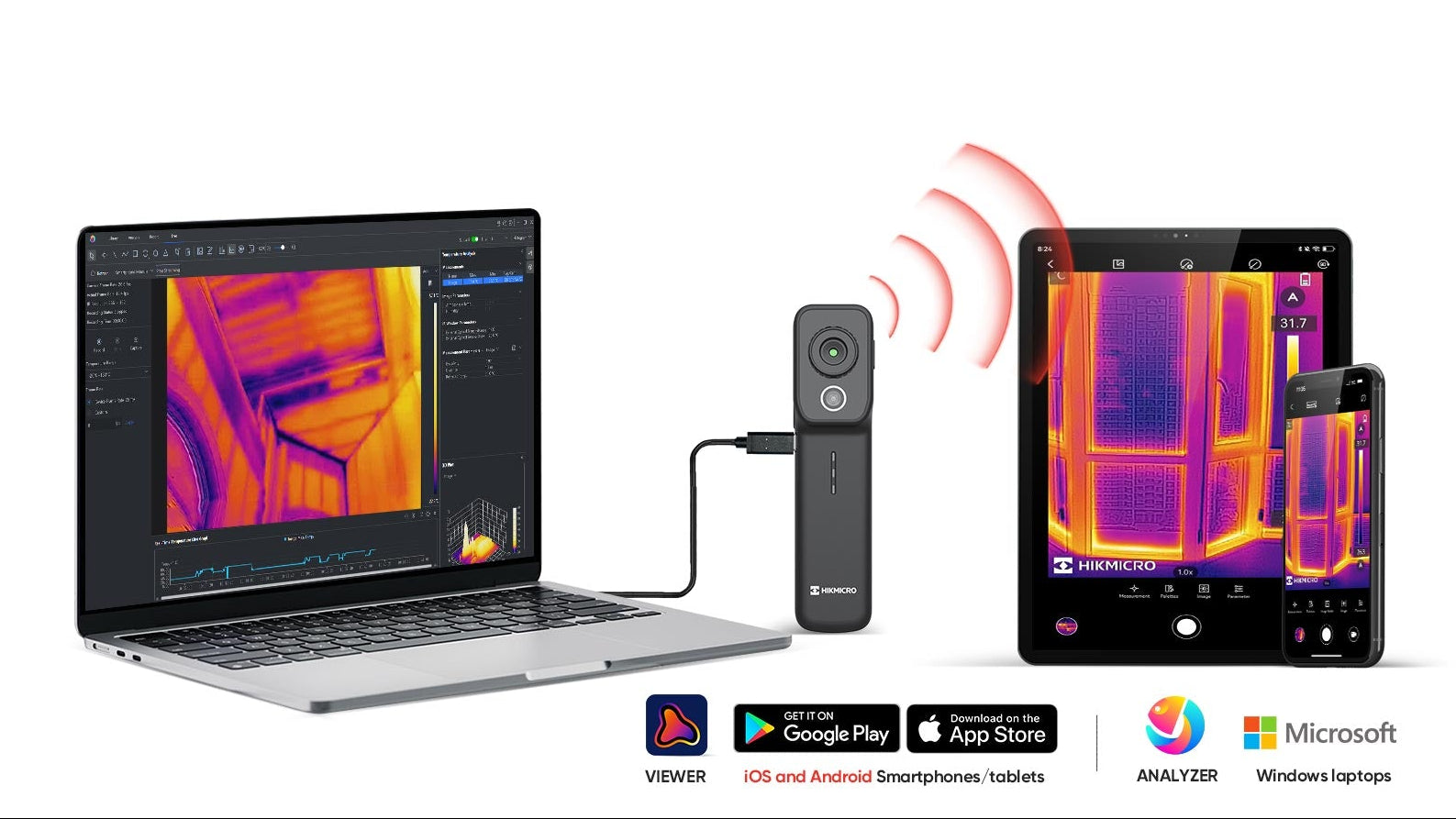

  • Stable Wireless Cross-Platform Connectivity: Skip the platform restrictions or connection degradation. Simply scan the integrated QR code to wirelessly link the camera to your phone, leaving you free to hold your phone where it's safe while mounting the camera right up against the hardware.

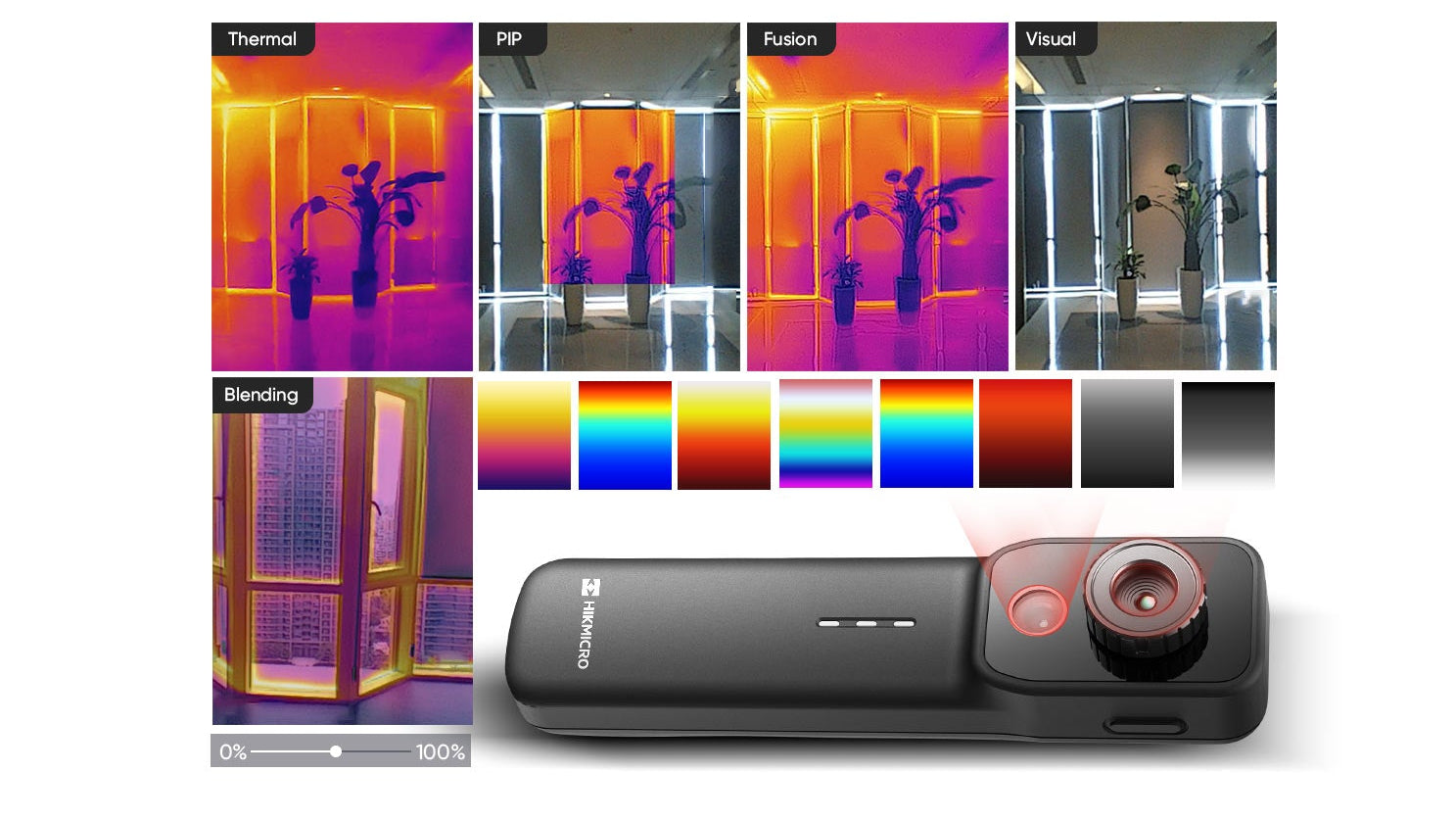

  • Dual-Lens Visual Fusion & 5 Image Modes: Packed with both an advanced VOx infrared sensor and a 0.3 Megapixel optical camera. Dynamically blend real-world details over heat patterns across 5 visual modes (Thermal, Visual, Fusion, PIP, and Blending) to instantly read labels and identify system components.

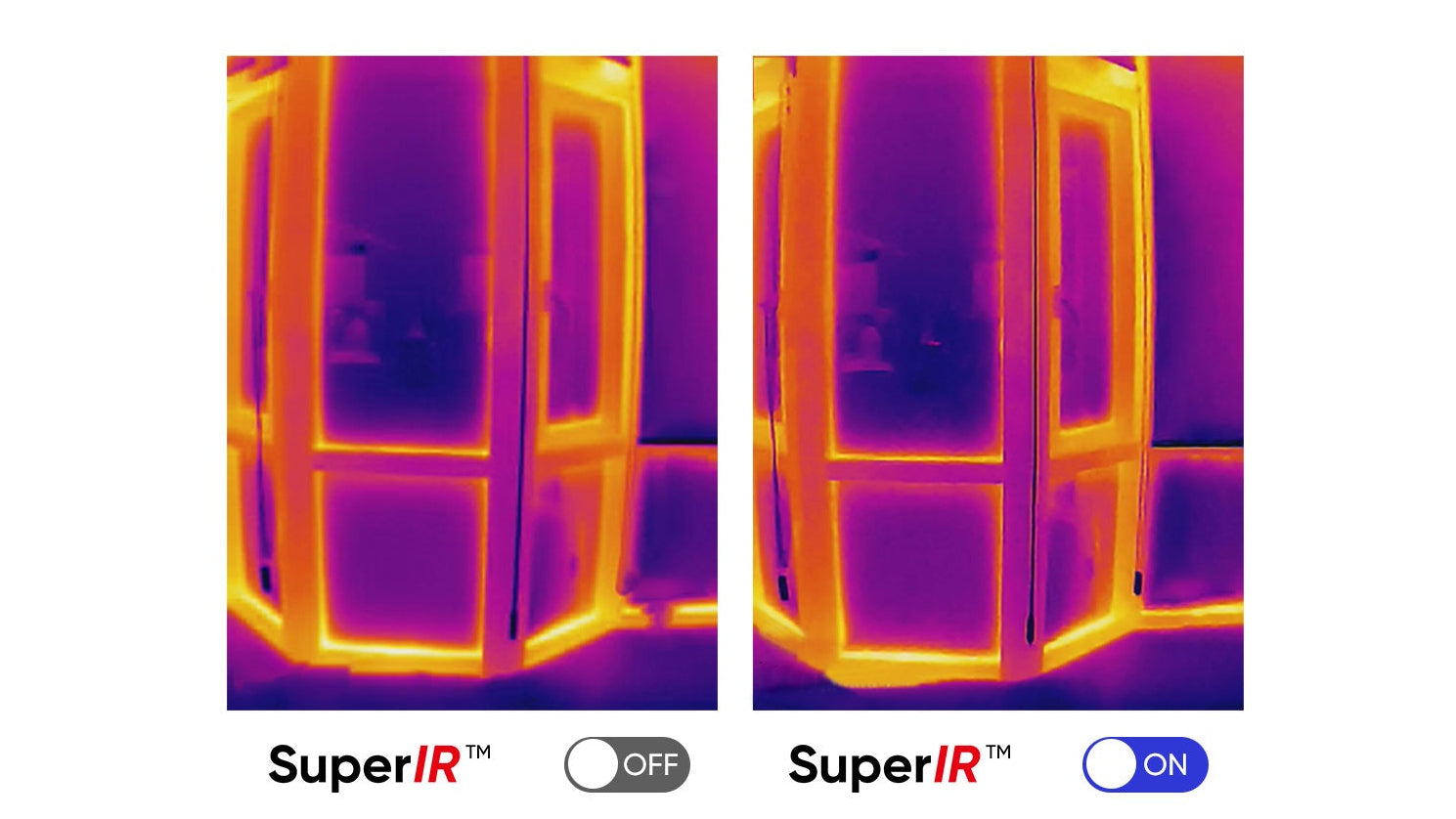

  •  256 x 192 Resolution with SuperIR: Utilizes 49,152 native pixels coupled with SuperIR processing to create highly defined live feeds, backed by an ultra-sensitive (NETD < 40 mK).

  • Expanded 550°C (1022°F) Thermal Threshold: Tailored for heavy mechanical and high-temperature environments, measuring accurately from -20°C up to 550°C with automated spot, line, and area tracking markers.

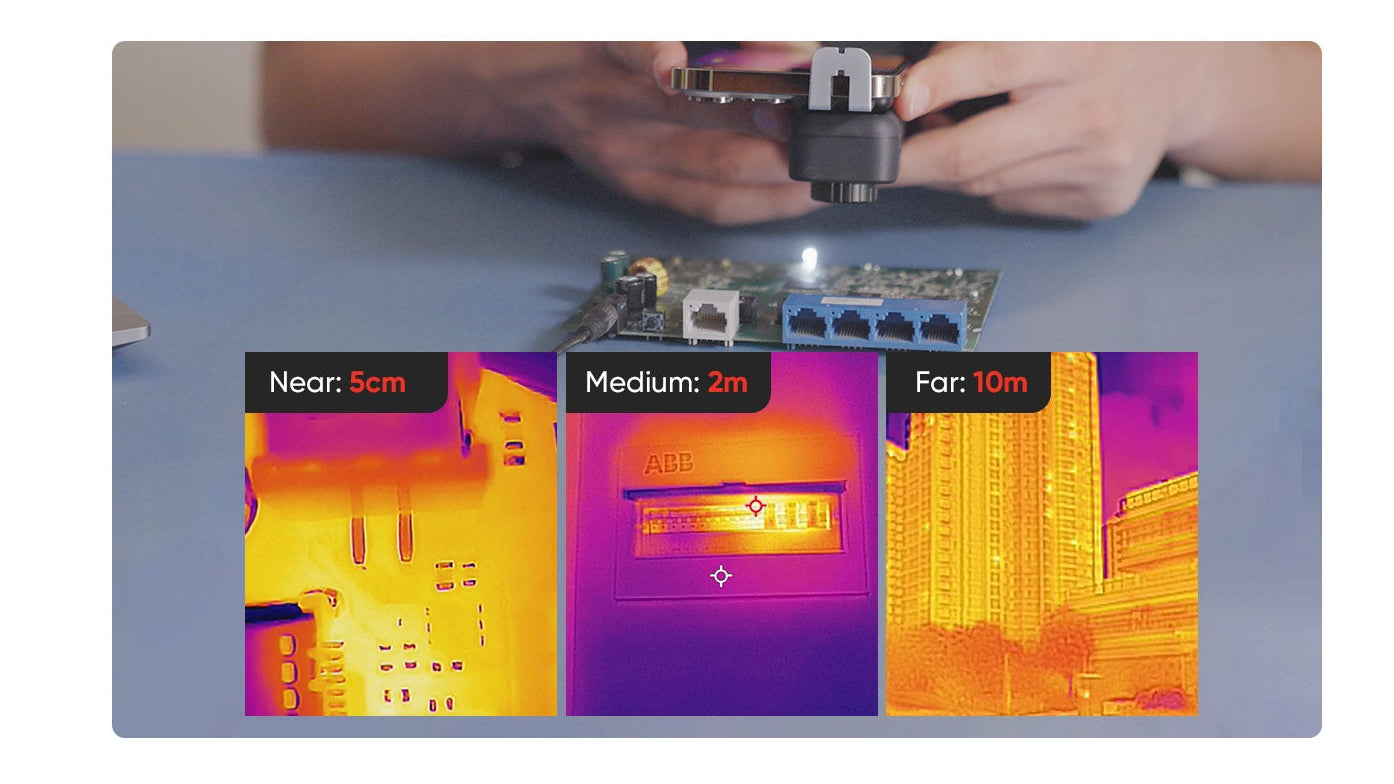

  • Adjustable Manual Focus Ring: Achieve crisp edge alignment from near to far. The 3.5mm manual lens allows clear focusing as close as 5 cm (0.16 ft), allowing for excellent close-up PCB electronic traces up to macro building checks.

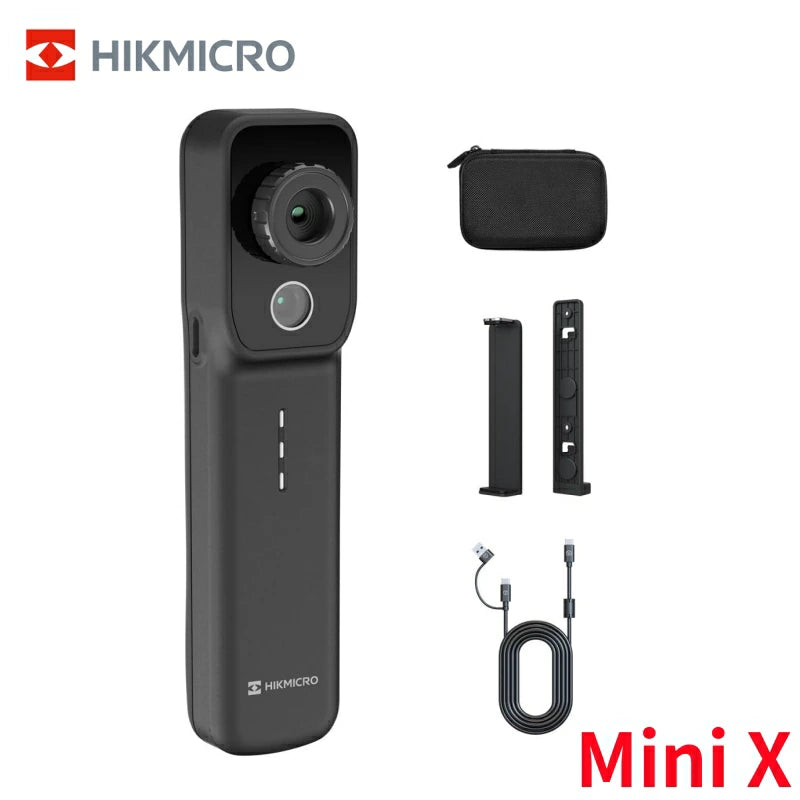

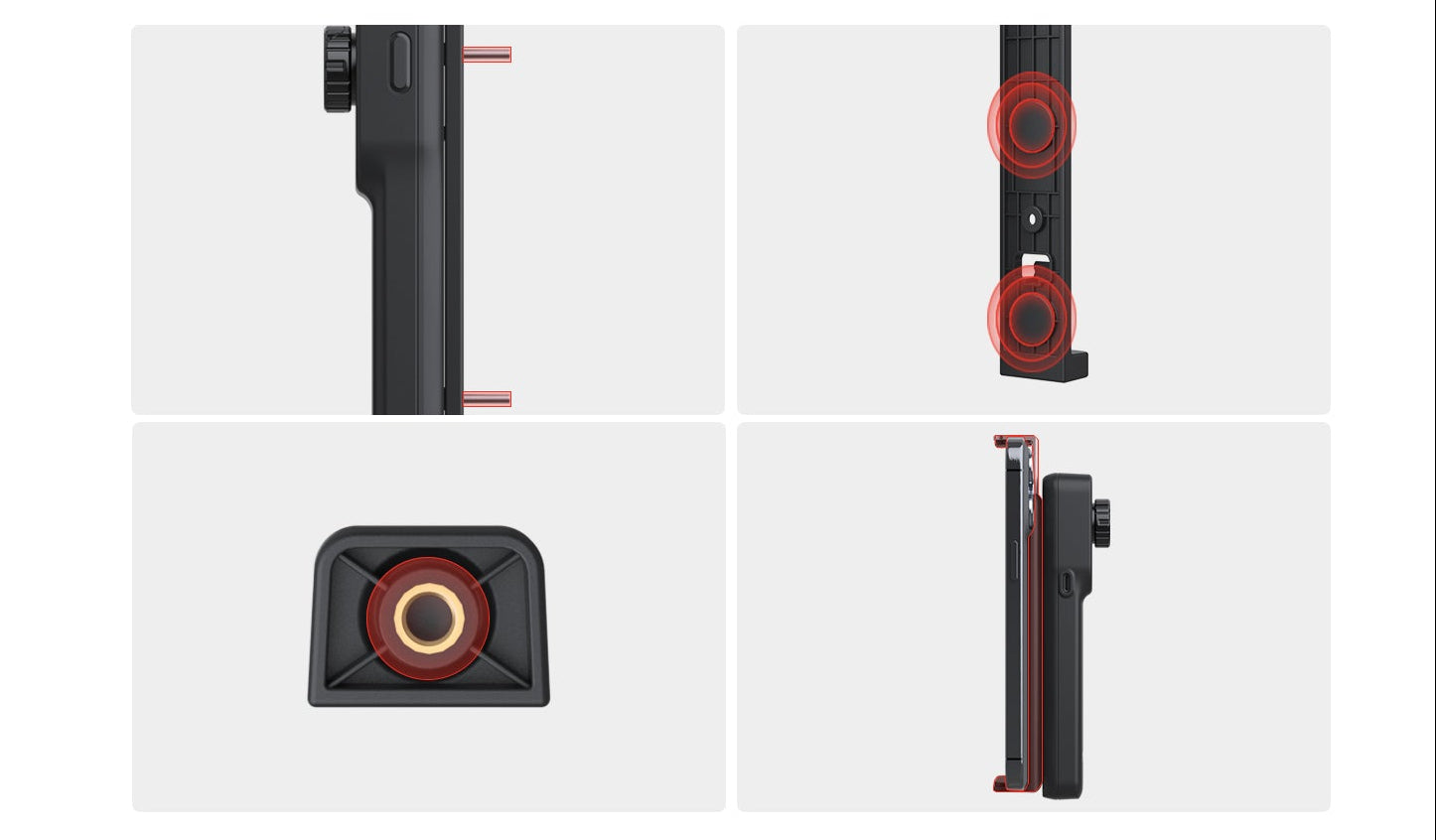

  • Versatile Mount Ergonomics & Rugged IP54 Build: Features a heavy-duty, pocketable body that supports four distinct physical setups: clip-on phone clamp, magnetic surface snap, wall slotting, or a standard tripod lock. Engineered with an IP54 moisture rating and 1-meter drop protection.

Datasheet

Manual
