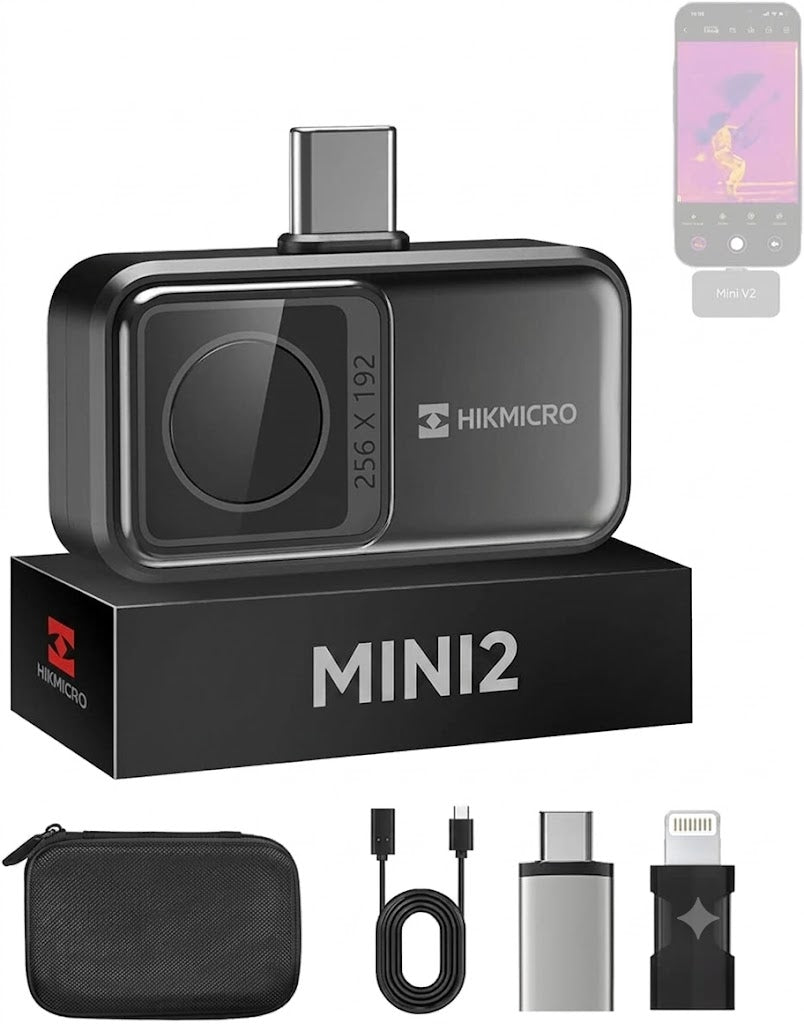

HIKMICRO Mini2 Smartphone Thermal Imaging Camera Module (Android USB-C)

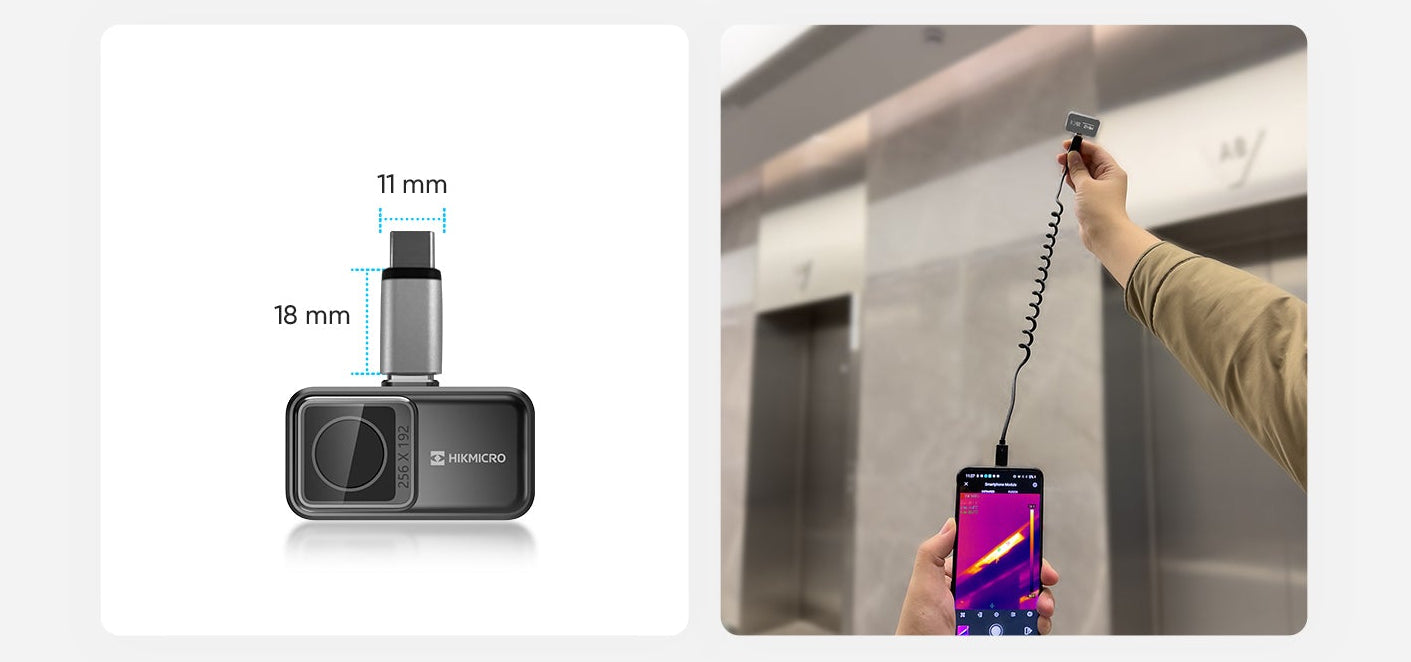

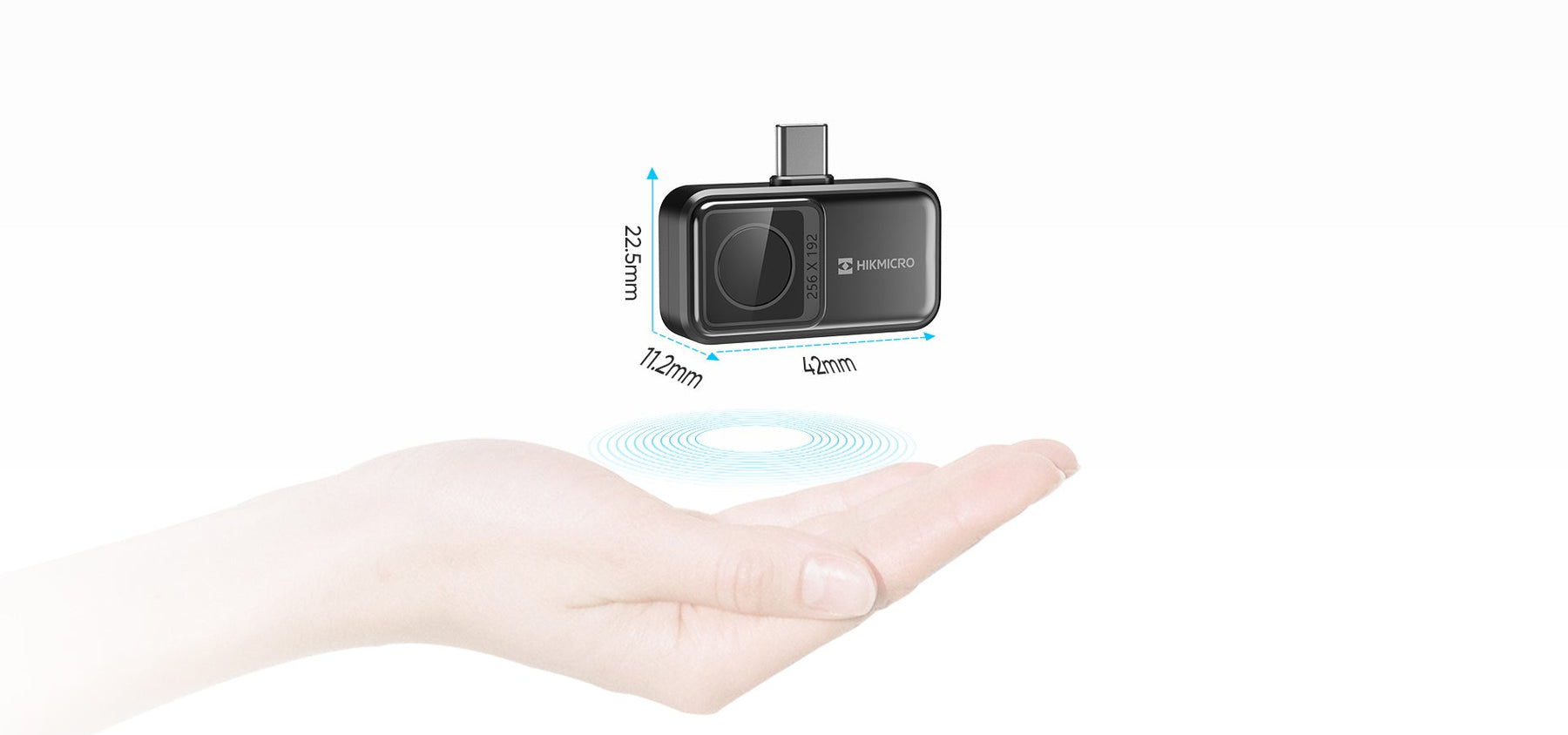

Turn Your Android Device into a Professional-Grade Thermal Imager. The original HIKMICRO Mini2 is a high-resolution, ultra-portable infrared camera module designed to plug directly into your Android smartphone or tablet's USB-C port. Weighing just 20 grams and running completely battery-free, this compact module utilizes your phone’s screen and computing power to map out temperatures with commercial-grade accuracy. It is the ultimate tool for electricians, HVAC techs, and facility inspectors who need high-definition thermography that fits seamlessly into a pocket.

Key Features:

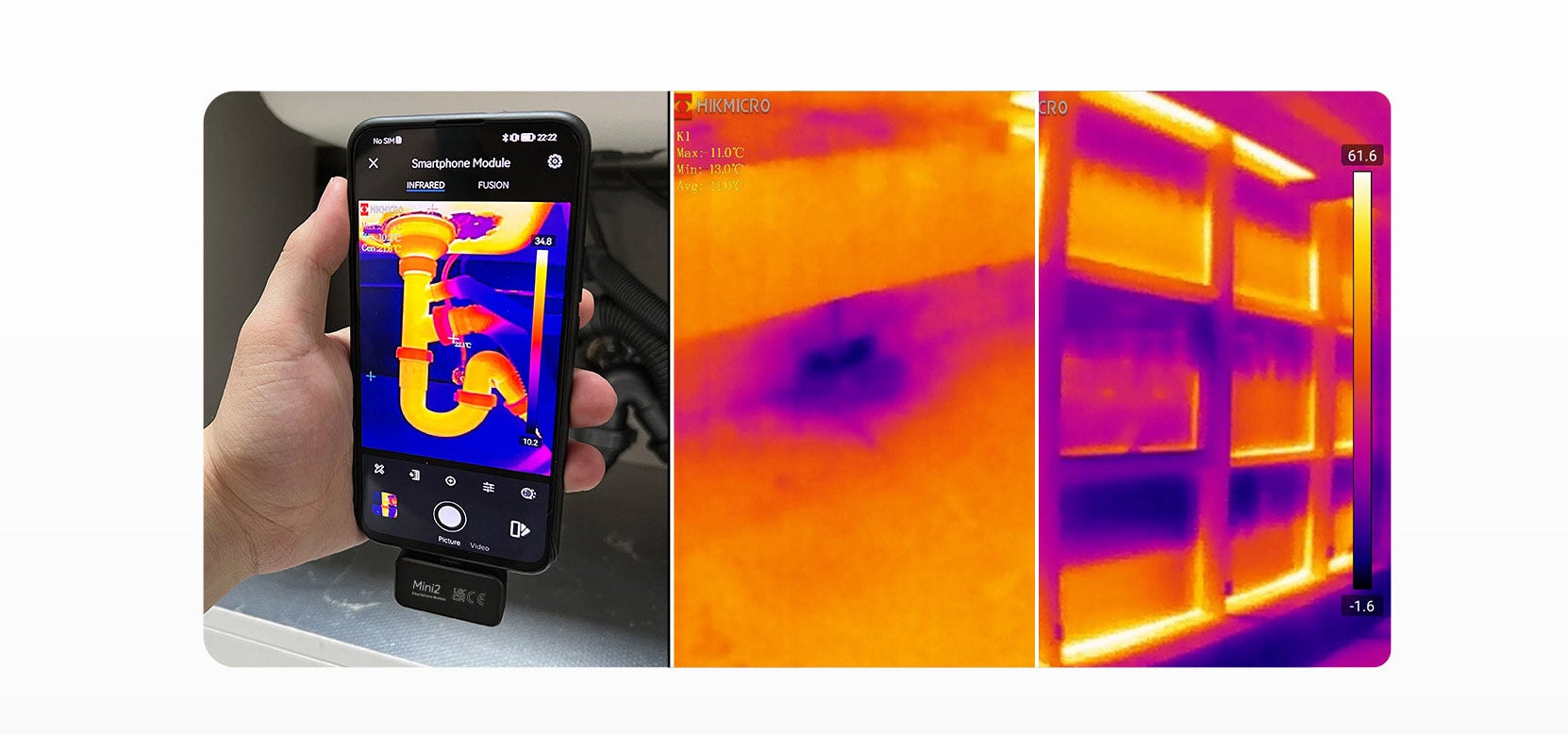

• True 256x192 Thermal Resolution: Packed with 49,152 native infrared pixels to offer crystal-clear image quality. Easily isolate subtle energy loss, hidden moisture leaks, or faulty electrical terminals safely from a distance.

• Lag-Free 25Hz Refresh Rate: See heat patterns evolve smoothly in real time. The high frame rate ensures fluid video recording and smooth panning across expansive targets.

• Wide-Angle 50° Focus-Free Lens: Features an expansive field of view, making it ideal for quickly scanning entire walls, flooring grids, breaker boxes, or building facades in a single pass.

• Industrial Temperature Range: Reliably reads target temperatures spanning from -20°C to 350°C (-4°F to 662°F) with a precision accuracy of ±2°C or ±2%.

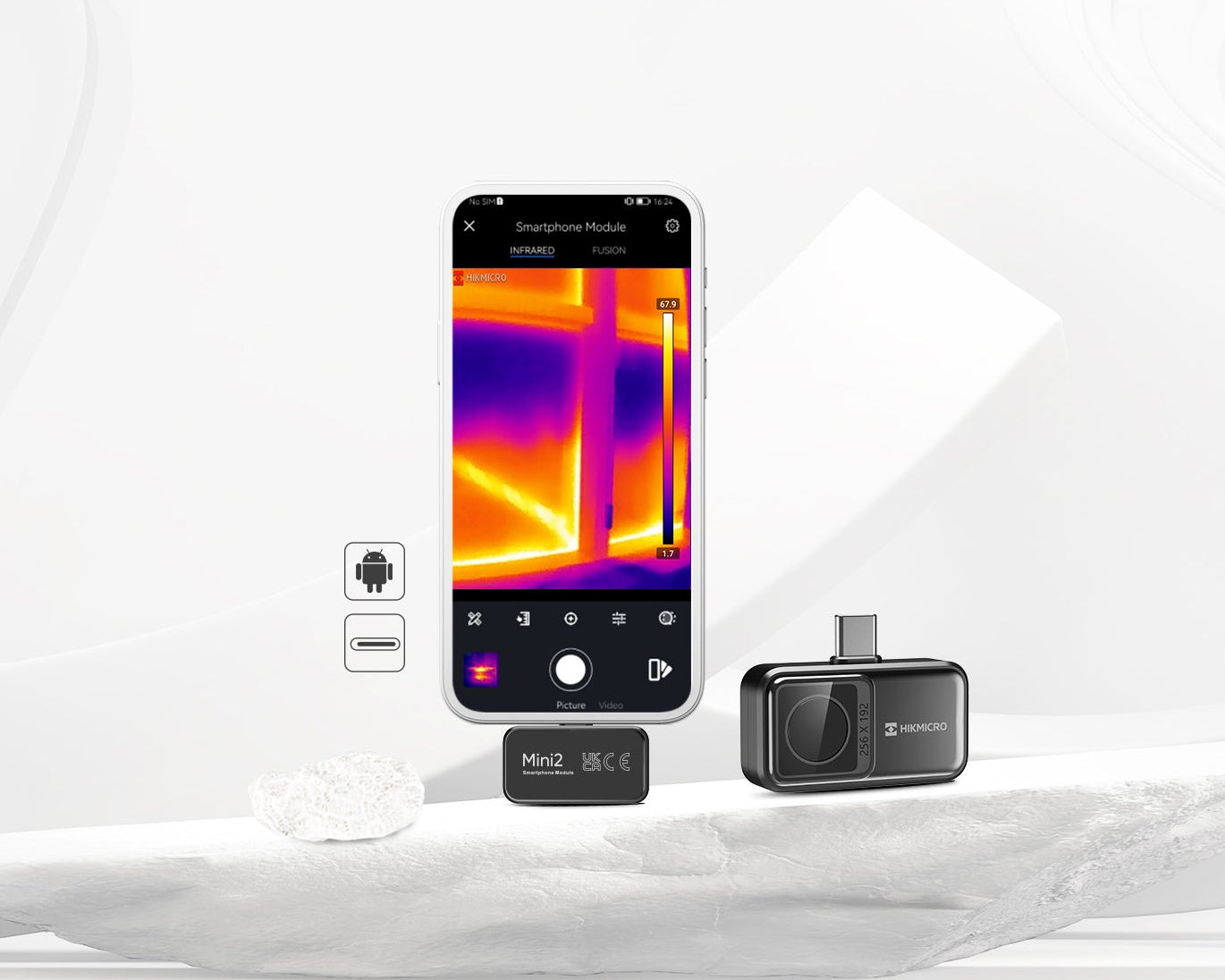

• Battery-Free Plug-and-Play Design: Powered entirely by your Android device while consuming minimal energy. If your phone is charged, your thermal imager is ready to troubleshoot.

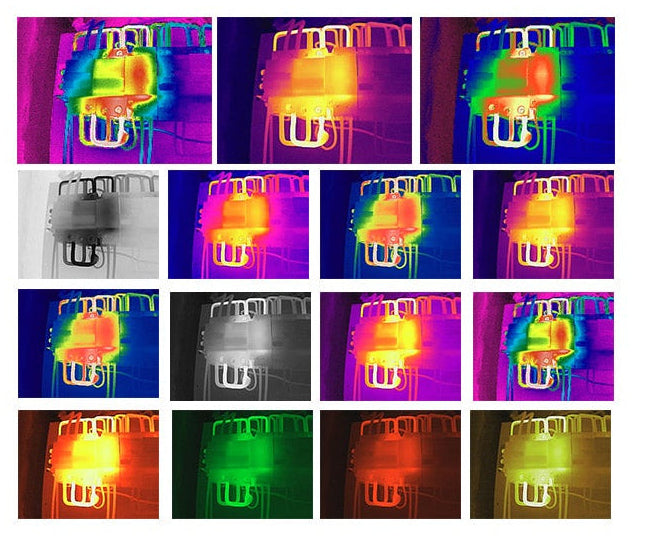

• Robust App Functionality: Use the free HIKMICRO Viewer Android App to unlock advanced multi-spot measurements (Center, Hot, Cold, and custom tracking spots), switch between 15 different color palettes, and create instant PDF reports right on site.

Datasheet

Compatibility
