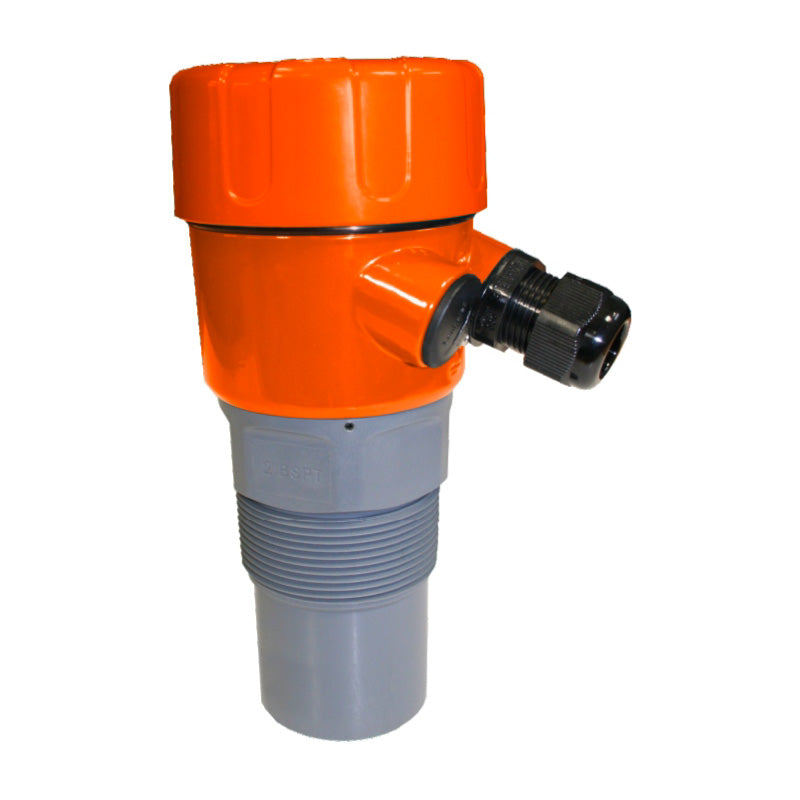

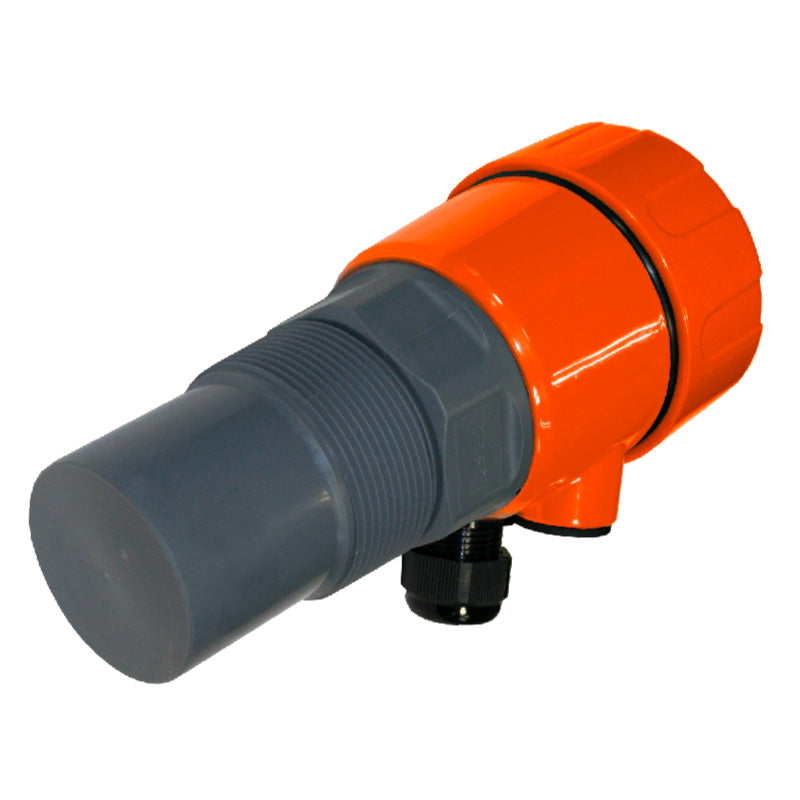

Ultrasonic Level Transmitter Microflex D


The Microflex-D from Hycontrol is a compact, non-intrusive, loop-powered ultrasonic level transmitter for continuous measurement of liquids. Microflex-D does not compromise on quality and provides effortless and intuitive operation together with easy and flexible mounting.

Microflex-D’s high chemical compatibility and measuring range of either 8 metres (Microflex-D) or 12 metres (Microflex-D ER) makes it appropriate for applications in a wide range of industries.

 The Microflex-D emits an ultrasonic pulse which is reflected from the surface of the liquid being measured. The reflected signal is processed using specially developed software to enhance the correct signal and reject false echoes. An automatic sensitivity control allows the unit to dynamically adjust and improve the received echoes to achieve the best possible measurement accuracy

 Features:

  • Two-wire 4-20 mA with HART connectivity
  • Simple programming via built-in LCD display
  • Ranges of up to 12 metres (40ft)
  • Non-contact measurement
  • Low overall cost of ownership
  • Ingress protection class IP67, NEMA 4x
  • Adaptive sensitivity control
  • Volume linearisation with 32-point table
  • Automatic temperature compensation
  • Simple Installation

Datasheet
Manual

 Specifications:

 Maximum Range

8 metres (26 ft)

12 metres (40ft)

Operating Voltage 7 - 28VDC at the terminal (residual ripple no greater than 100mV)
Power Consumption 500mW @ 24VDC
Analog Output 4-20mA modulating output module with HART (Recommended 250 Ohm @ 24VDC)
Analog Resolution 14 bits
Communications 4-20mA with HART
Blanking Distance 250 mm (10 inch)
Frequency 1 mm (0.04”)
Electronic Accuracy

+/- 0.5% of maximum range

+/- 0.25% of maximum range

Operating Temperature -40°C to 60°C
Maximum Operating Pressure -0.5 to 3 bar (0 - 44 PSI)
Automatic Temperature Compensation Yes
Beam Angle
Materials Transducer: PVDF Housing: Powder coated aluminium
Display 4-line graphic display
Keypad 4 keys = CAL, RUN, UP, DOWN
Memory >10 years data retention
Enclosure Sealing IP67
Cable Entries M20 cable glands
Mounting

2” BSPT Thread

2” NPT Thread

Typical Weight 1kg (2.2 pounds)
Volume

Pre-set common vessel shapes

32 point programmable linearization table

Requires PC connection with Vision System II software
