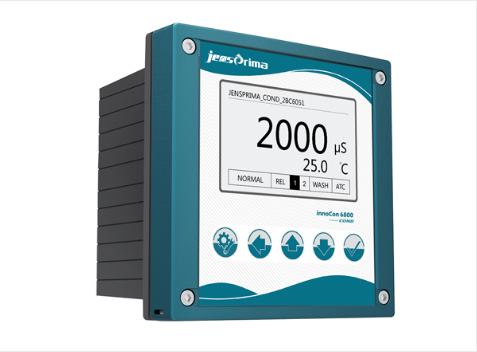

InnoCon 6800C Conductivity / Resistivity/ TDS Measurement

InnoCon 6800C controller is specially designed for water treatment and industrial process control. Used with InnoSens 310/330 sensor, it can measure the conductivity, resistivity, TDS and temperature of the sample water. It features automatic temperature compensation and has various mounting methods. 4-20mA/RS485 and multiple control function outputs are a standard feature.

Application

Process Water, Drinking Water, Cooling Water, Wastewater Treatment

Features

  • The latest wide power input, super anti-interference design

  • Flame retardant plastic bite shell, better texture feel

  • Large-screen backlit LCD shows measured values, temperature and relay status

  • C hinese / English menu, easier to operate

  • Password protection, to prevent unauthorized operation

  • New calibration steps can help reduce operational errors

  • NEMA4X / IP65 protection class, a variety of installation methods

  • 2 sets relay output can set High/ Low

  • Automatic cleaning relay output

  • 2 channel 4-20mA current / RS485 Modbus output

  • One key to restore factory settings

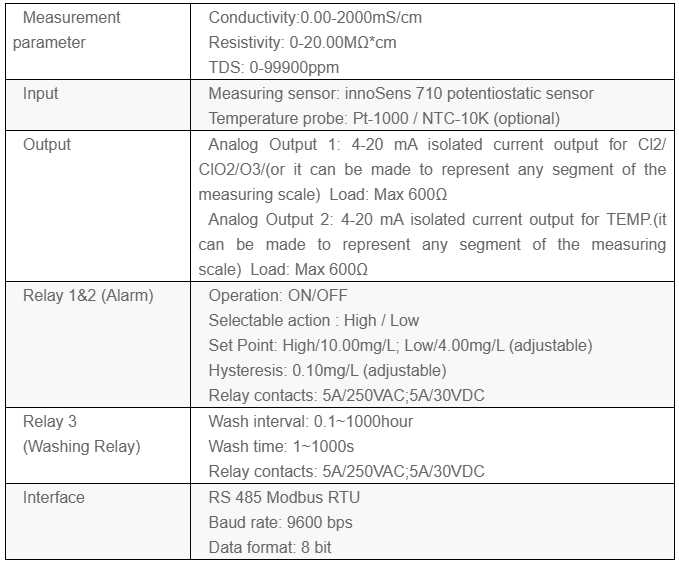

Datasheet
